SKU: 81102.TV.EU

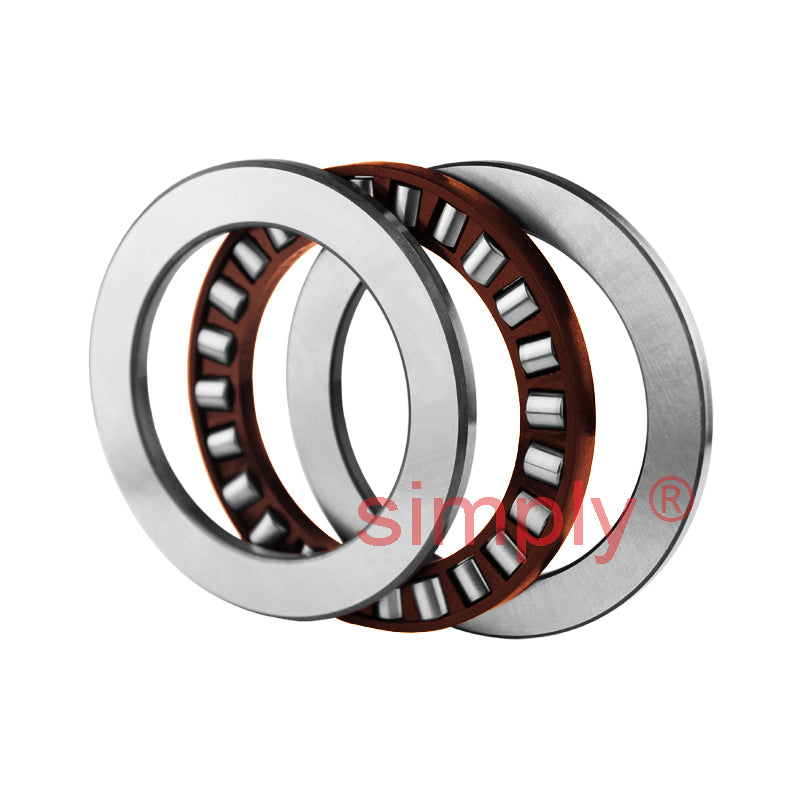

Premier Budget 81102TV Cylindrical Roller Thrust Bearing with Polyamide Cage 15x28x9mm
Premier Budget 81102TV Cylindrical Roller Thrust Bearing with Polyamide Cage 15x28x9mm
Regular price
$11.07
ex VAT
Regular price
Sale price
$11.07
ex VAT
Equivalent to: AZ15289 K81102TV 81102.TV
In stock
Price Break
10+
$7.41
19+
$7.00
29+
$6.91
39+
$6.83
49+
$6.75
74+
$6.66
99+
$6.25
199+
$6.16
249+
$6.08
499+
$6.00
999+
$5.83
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 9mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| H | 9mm |
| Dynamic load C | 11.2 kN |
| Static load Co | 27 kN |
| Fatigue load limit Pu | 2.45 kN |
| Min load factor A | 0 |
| Reference speed | 4300 rpm |
| Limiting speed | 8500 rpm |
| Cage reference | K81102TV |
| Weight | 0.024 kg |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
