SKU: 81105.TV.EU

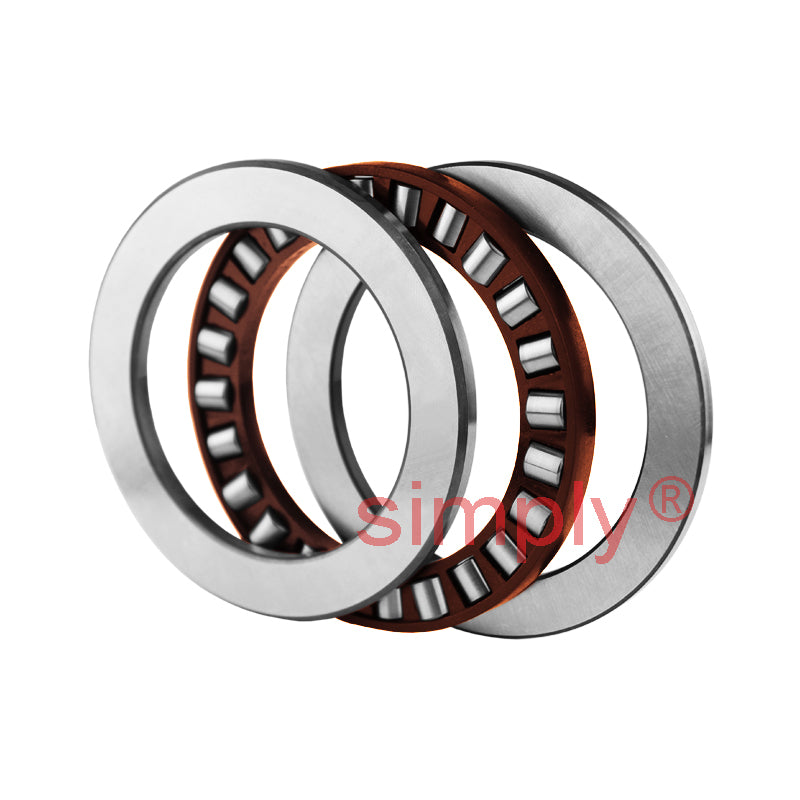

Premier Budget 81105TV Cylindrical Roller Thrust Bearing with Polyamide Cage 25x42x11mm
Premier Budget 81105TV Cylindrical Roller Thrust Bearing with Polyamide Cage 25x42x11mm
Regular price
$16.90
ex VAT
Regular price
Sale price
$16.90
ex VAT
Equivalent to: AZ254211 K81105TV 81105.TV
In stock
Price Break
10+
$11.32
19+
$10.69
29+
$10.56
39+
$10.43
49+
$10.31
74+
$10.18
99+
$9.54
199+
$9.42
249+
$9.29
499+
$9.16
999+
$8.91
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 11mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| H | 11mm |
| Dynamic load C | 25 kN |
| Static load Co | 69.5 kN |
| Fatigue load limit Pu | 6.8 kN |
| Min load factor A | 0 |
| Reference speed | 3200 rpm |
| Limiting speed | 6300 rpm |
| Cage reference | K81105TV |
| Weight | 0.053 kg |
