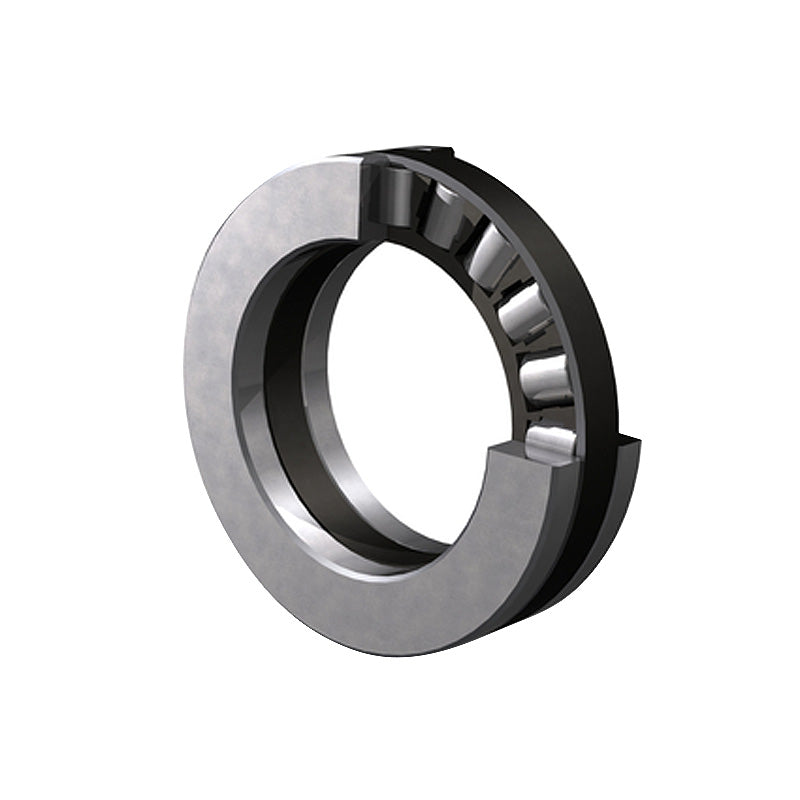

• NTN 81208T2 Cylindrical Roller Thrust Bearing with Cage 40x68x19mm - Allow 2-3 Days
  • NTN
1 2

SKU: 81208T2-NTN

NTN 81208T2 Cylindrical Roller Thrust Bearing with Cage 40x68x19mm - Allow 2-3 Days

NTN 81208T2 Cylindrical Roller Thrust Bearing with Cage 40x68x19mm - Allow 2-3 Days
$48.63 ex VAT
$48.63 ex VAT
Sale Sold out

Low stock

Price Break
3+ $32.57
4+ $30.74
9+ $30.38
19+ $30.01
49+ $29.65
99+ $29.28
499+ $27.45
999+ $27.08
1999+ $26.72
2999+ $26.35
4999+ $25.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
19mm
Technical
d - Bore diameter of support washer inner ring (WS) 40mm
D - Outside diameter of support washer outer ring (GS) 68mm
d1 - External diameter of support washer inner ring (WS) 68mm
D1 - Bore diameter bearing washer outer ring (GS) 42mm
T - Thrust bearing width 19mm
Dw - Rolling element diameter 9mm
Dc1 - Roller cage bore diameter 40mm
Dc - Roller cage outer diameter 68mm
rs - Minimum fillet radius 1mm
Cage assembly reference K81208T2
Bearing ring (inner ring WS) WS81208
Bearing ring (outer ring GS) GS81208
Ea - Roller reference outer diameter 62.9mm
Eb - Roller reference inner diameter 43.7mm
Ca - Dynamic axial load rating 74.5 kN
C0a - Static axial load rating 190 kN
Cua - Limit axial load rating 23.2 kN
N - Grease lubrication limit speed 1100 tr/min
N - Oil lubrication limit speed 4400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Minimum inner ring shoulder diameter (WS) 63mm
Db max - Maximum outer ring shoulder diameter (GS) 44mm
ras max - Maximum shaft & housing fillet radius 1mm
