SKU: 81210.TN.EU

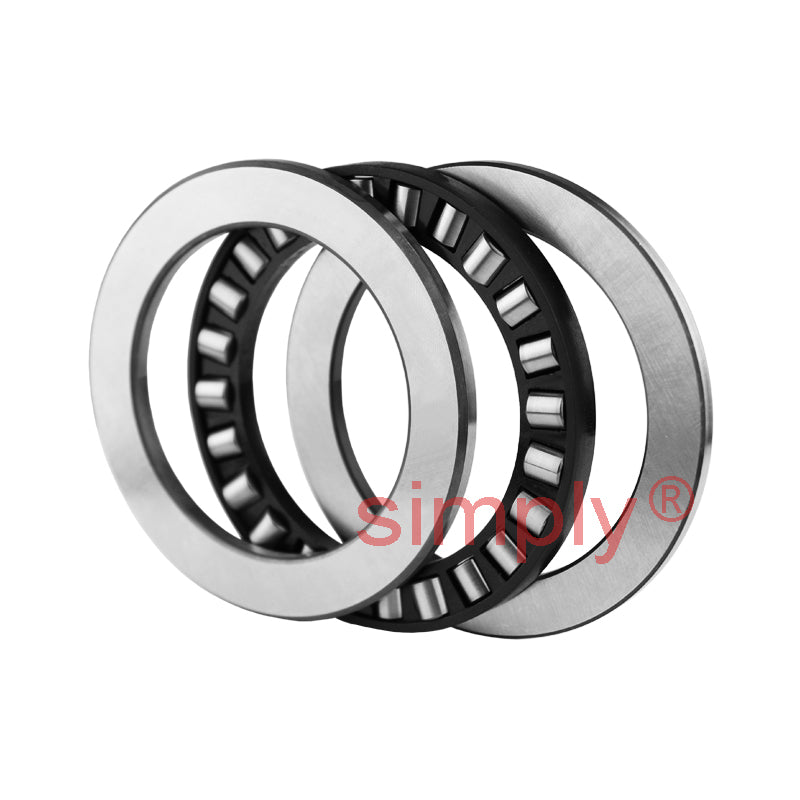

Premier Budget 81210TN Cylindrical Roller Thrust Bearing with Nylon Cage 50x78x22mm
Premier Budget 81210TN Cylindrical Roller Thrust Bearing with Nylon Cage 50x78x22mm
Regular price
$53.44
ex VAT
Regular price
Sale price
$53.44
ex VAT
Equivalent to: AZ507822 K81210TN 81210TV
In stock
Price Break
10+
$35.80
19+
$33.79
29+
$33.38
39+
$32.98
49+
$32.58
74+
$32.18
99+
$30.17
199+
$29.76
249+
$29.36
499+
$28.96
999+
$28.15
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 78mm
- Width:
- 22mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 78mm |
| H | 22mm |
| Dynamic load C | 91.5 kN |
| Static load Co | 300 kN |
| Fatigue load limit Pu | 31 kN |
| Min load factor A | 0.0072 |
| Reference speed | 1700 rpm |
| Limiting speed | 3400 rpm |
| Cage reference | K81210TN |
| Weight | 0.36 kg |
