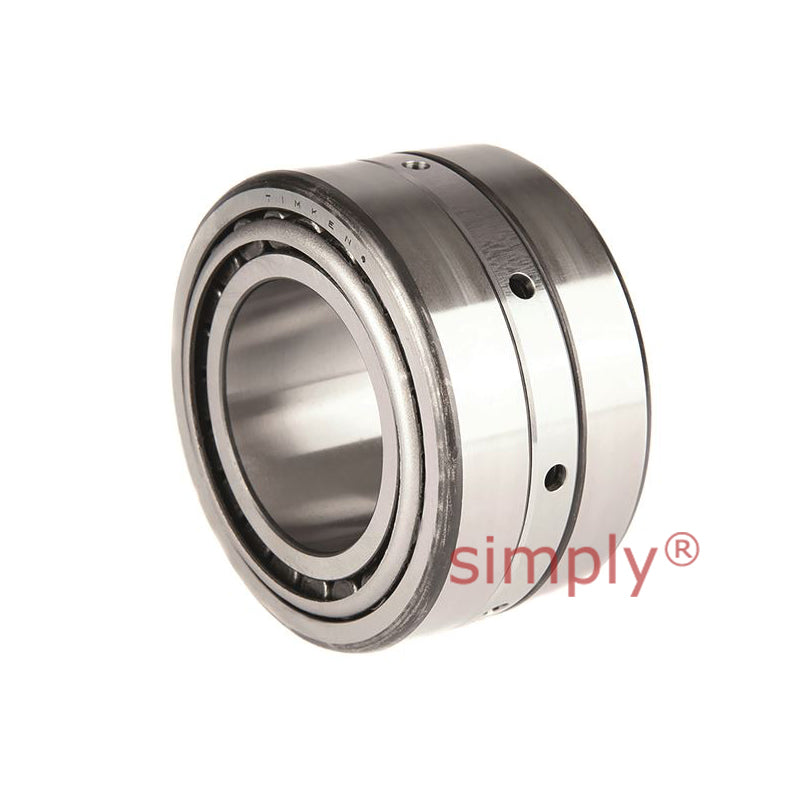

Timken 82587D/82950/Y5S-82950 TDI Double Inner Race Taper Roller Bearing 5.875x9.5x4.1875x4.1475 inch
Timken 82587D/82950/Y5S-82950 TDI Double Inner Race Taper Roller Bearing 5.875x9.5x4.1875x4.1475 inch
Out of stock
Description
Description

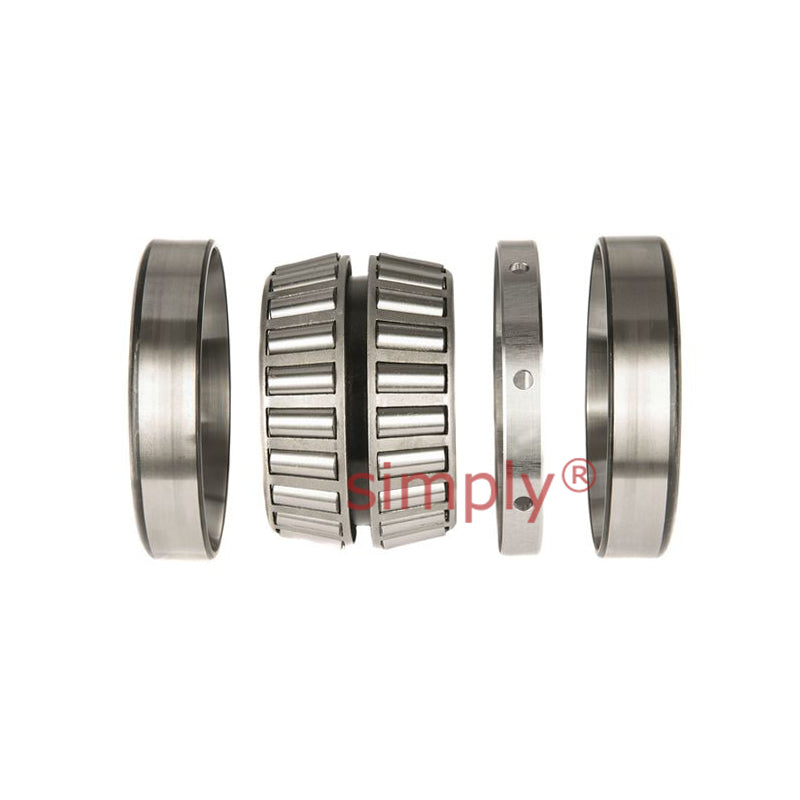

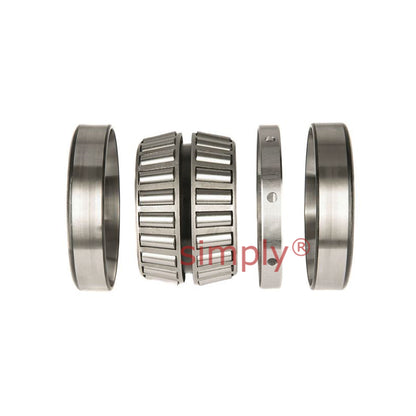

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 149.23mm = 5.875 (5-7/8) inch
- Outside Diameter:
- 241.3mm = 9.5 (9-1/2) inch
- Width:
- 106.36mm = 4.187 (4-3/16) inch
Technical
Technical
| d | 149.225mm = 5.875 inch |
|---|---|
| D | 241.3mm = 9.5 inch |
| T | 106.362mm = 4.1875 inch |
| C | 105.346mm = 4.1475 inch |
| Dynamic (1) C1 | 830000N |
| Factors (5) e | 0.44 |
| Factors (5) Y1 | 1.53 |
| Factors (5) Y2 | 2.27 |
| Dynamic (2) C90 | 124000N |
| Dynamic (2) Ca90 | 93600N |
| Dynamic (2) C90(2) | 215000N |
| Factors (5) K | 1.32 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 165mm = 6.5 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 215mm = 8.46 inch |
| G1 | 460 |
| G2 | 81.1 |
| Cg | 0.1405 |
