SKU: 89316.TN.MB

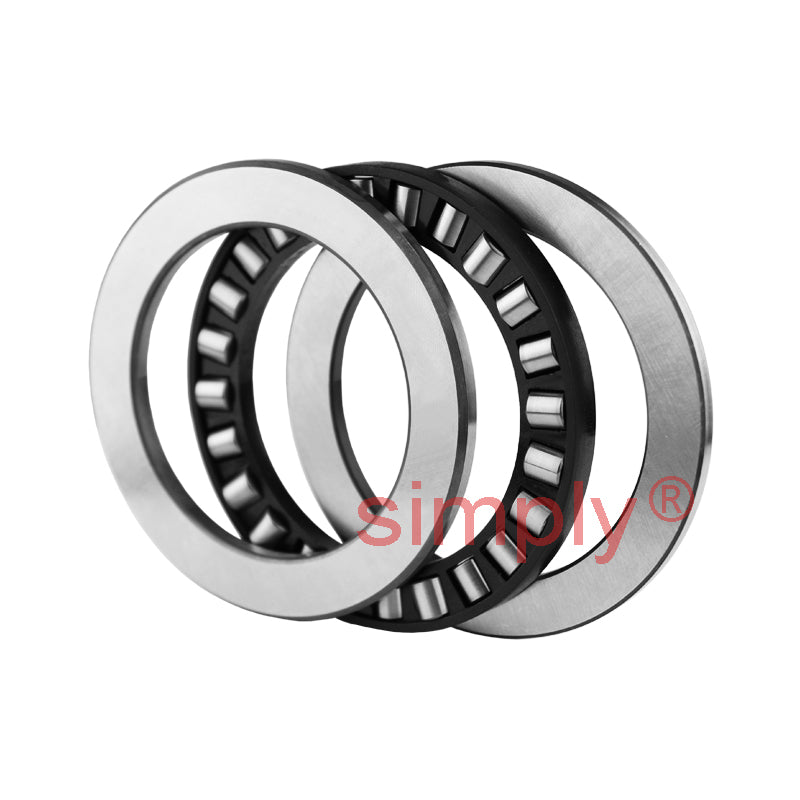

Major Brand 89316TN Cylindrical Roller Thrust Bearing with Nylon Cage 80x140x36mm
- Regular price
- $472.27 ex VAT
- Sale price
- $472.27
- Regular price
-
Not in stock
Quantity Price Breaks
10
$420.32
19
$396.71
29
$391.98
39
$387.26
49
$382.54
74
$377.82
99
$354.20
199
$349.48
249
$344.76
499
$340.03
999
$330.59
SKU:
89316.TN.MB
Major Brand 89316TN Cylindrical Roller Thrust Bearing with Nylon Cage 80x140x36mm
- Regular price
- $472.27 ex VAT
- Sale price
- $472.27
- Regular price
-
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Technical
| d | = | 80mm |
| D | = | 140mm |
| H | = | 36mm |
| Dynamic load C | = | 224 kN |
| Static load Co | = | 965 kN |
| Fatigue load limit Pu | = | 96.5 kN |
| Min load factor A | = | 0.074 |
| Reference speed | = | 1200 rpm |
| Limiting speed | = | 2400 rpm |
| Cage reference | = | K89316TN |
| Weight | = | 2.35 kg |
