SKU: 8x22x6/6.5_TCN1SS_VI_NAK

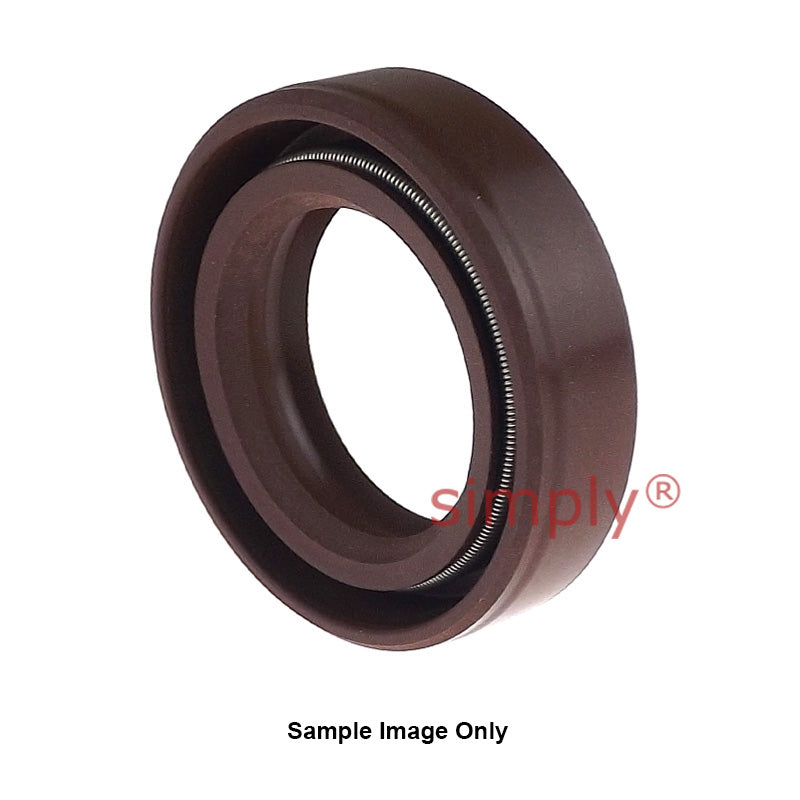

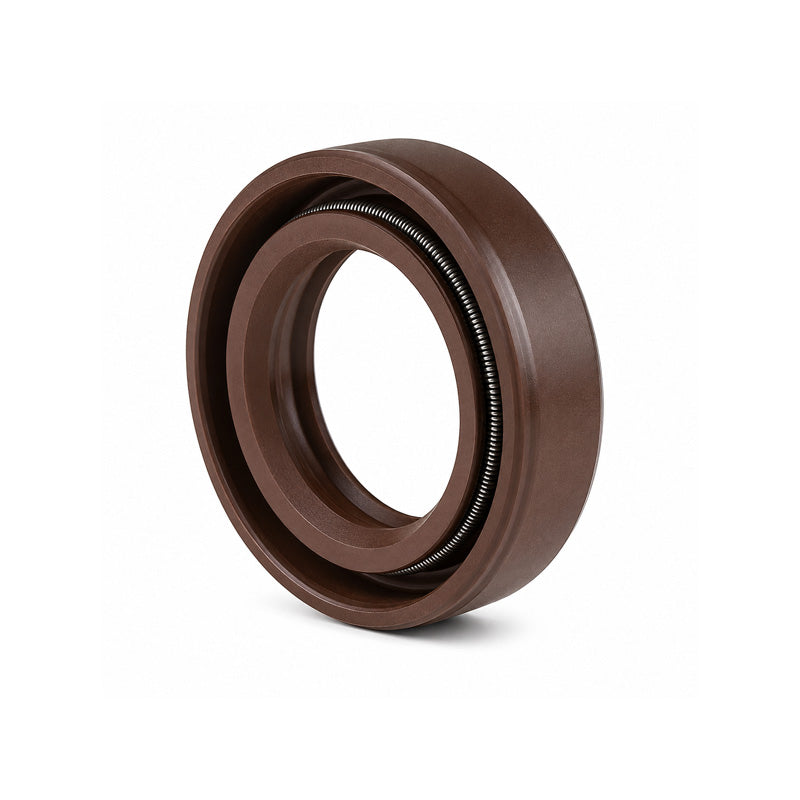

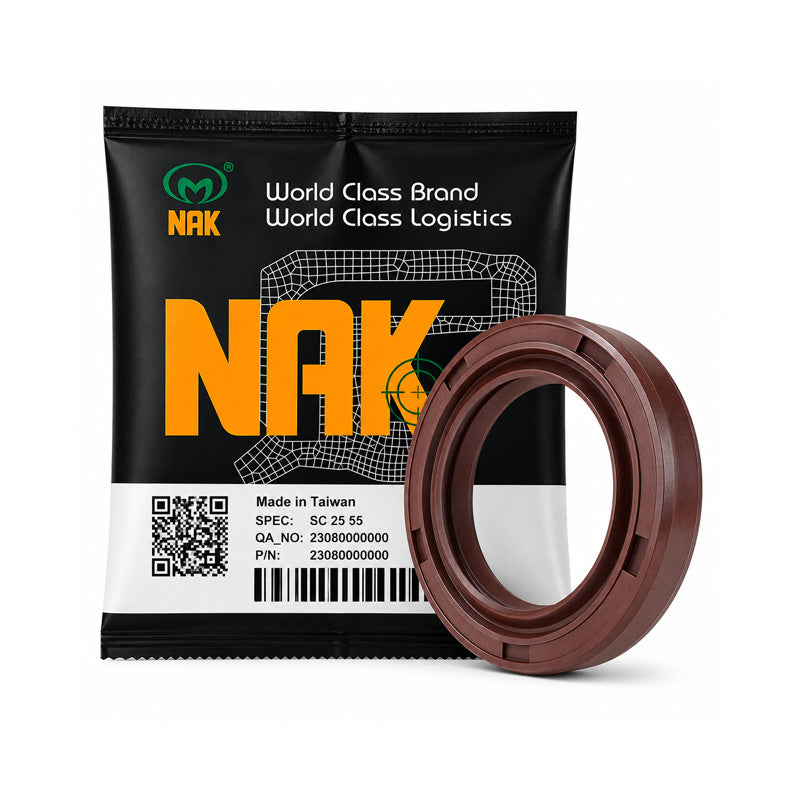

NAK 8x22x6/6.5mm HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Stainless Spring TCN1
- Regular price
- $34.13 ex VAT
- Sale price
- $34.13
- Regular price
-
Quantity Price Breaks
NAK 8x22x6/6.5mm HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Stainless Spring TCN1
- Regular price
- $34.13 ex VAT
- Sale price
- $34.13
- Regular price
-
Description
NAK N1..11 FKM Pressure Resistant Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TCN1, TCN11 and TDN1 type seals feature a special design of the short flex section and special material and structural designs making these oil seals best suited for high-pressure applications. These types feature a sealing FKM rubber lip on the inside diameter as well as an external dust lip. These oil seal types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.
Technical
| --- | = | Dimensions |
| Shaft Size (not inside diameter) d | = | 8mm |
| Outside Diameter (D) | = | 22mm |
| Width (b) | = | 6mm |
| Width 2 (b1) | = | 6.5mm |
| --- | = | Specifications |
| Avg. Pressure | = | 3.5 bar |
| Max. Pressure | = | 7 bar |
| Max. Velocity | = | 9 m/s |
| Max PV | = | 10 bar*m/s |
| --- | = | Material |
| Material | = | FKM Rubber |
| Spring Material | = | Stainless Steel |
| = | Colour | |
| Brown | = | --- |
| Weights | = | Weight |
| 0.01 kg | = | N/A |
