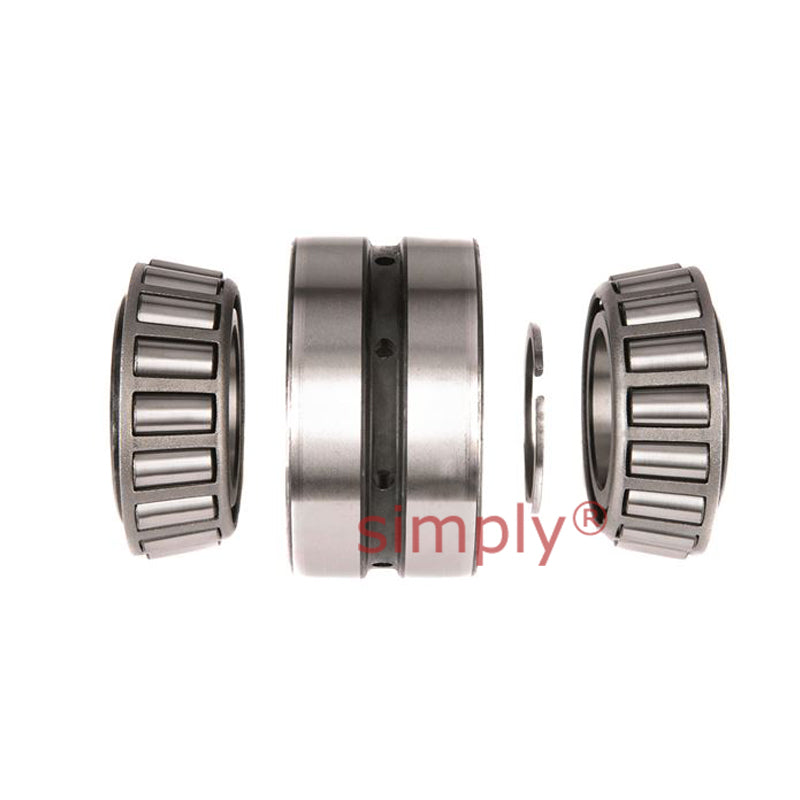

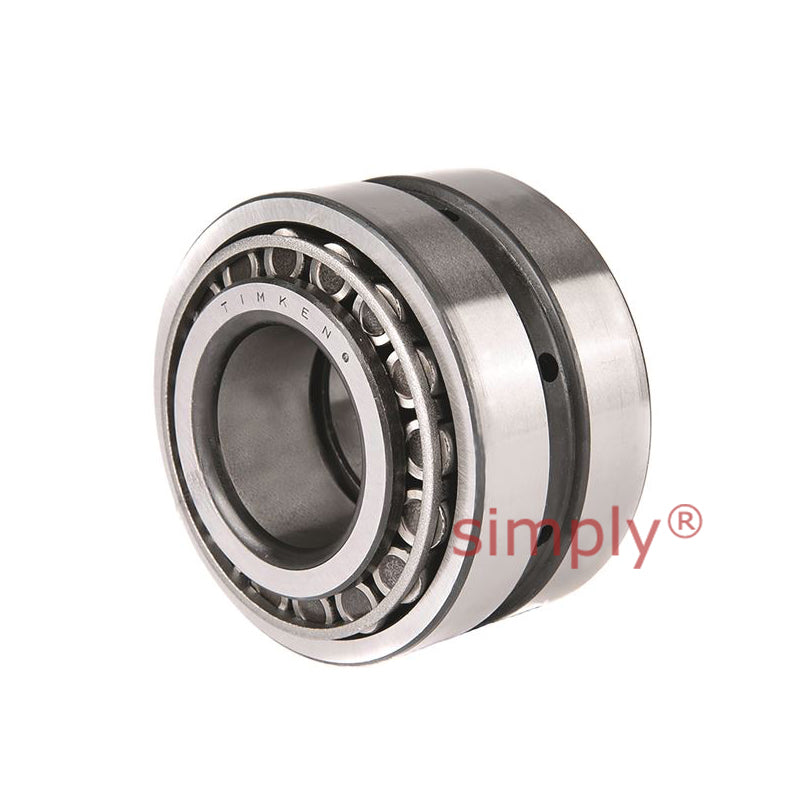

Timken 9285/9220D/X4S9285 TDO Double Outer Race Taper Roller Bearing 3x6.375x4.156x2.781 inch
Timken 9285/9220D/X4S9285 TDO Double Outer Race Taper Roller Bearing 3x6.375x4.156x2.781 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 76.20mm = 3 inch
- Outside Diameter:
- 161.93mm = 6.375 inch
- Width:
- 105.56mm = 4.156 inch
Technical
Technical
| d | 76.2mm = 3 inch |
|---|---|
| D | 161.925mm = 6.375 inch |
| T | 105.562mm = 4.156 inch |
| C | 70.637mm = 2.781 inch |
| Dynamic (1) C1 | 480000N |
| Factors (5) e | 0.71 |
| Factors (5) Y1 | 0.95 |
| Factors (5) Y2 | 1.42 |
| Dynamic (2) C90 | 71400N |
| Dynamic (2) Ca90 | 86700N |
| Dynamic (2) C90(2) | 124000N |
| Factors (5) K | 0.82 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 103mm = 4.06 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 153mm = 6.03 inch |
| G1 | 102 |
| G2 | 18.4 |
| Cg | 0.0984 |
