SKU: 93788D/93125/Y15S-93125-TIM

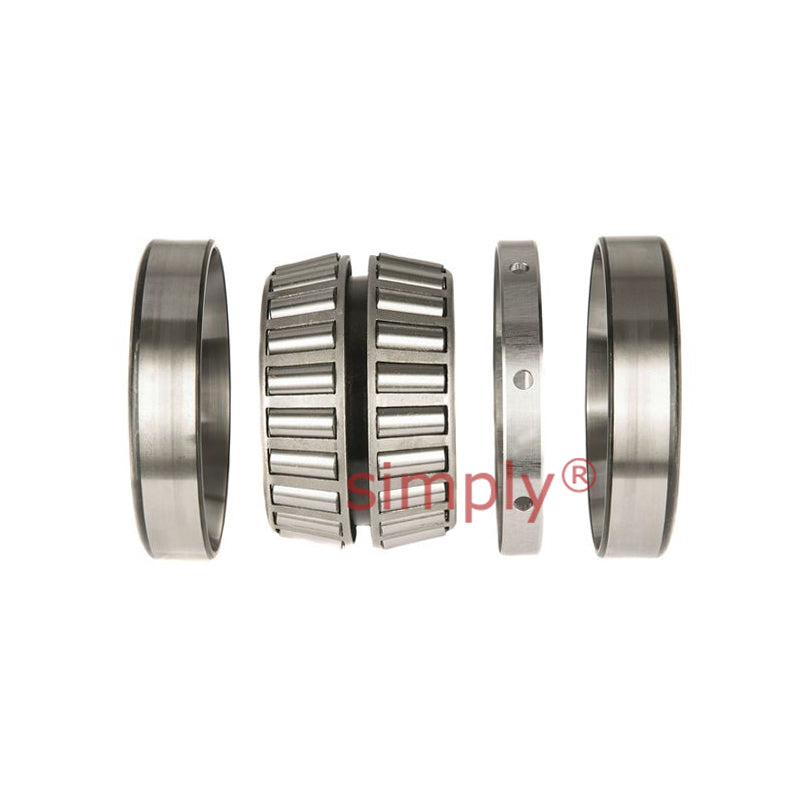

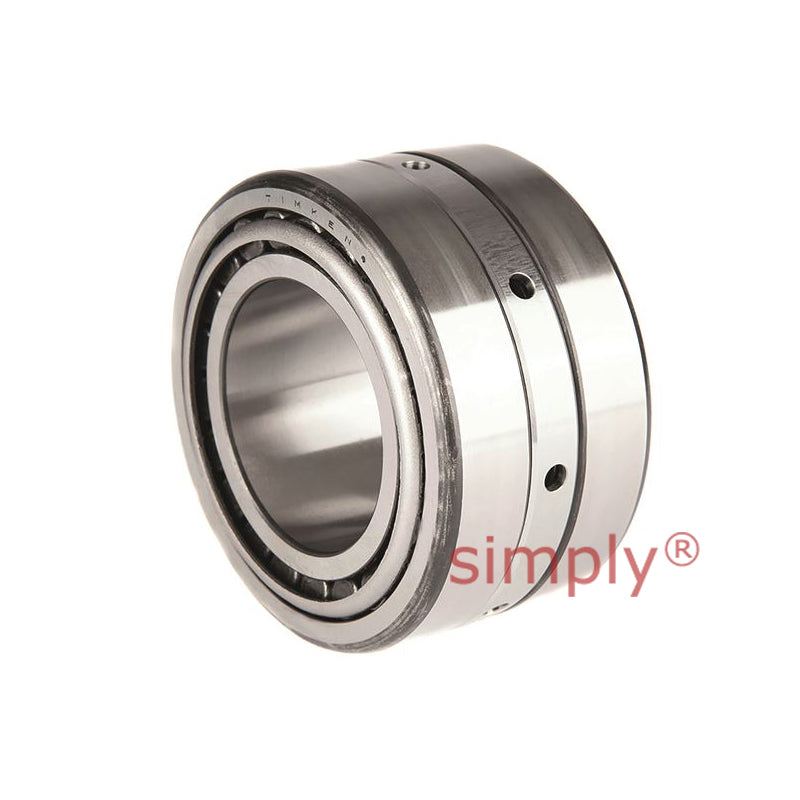

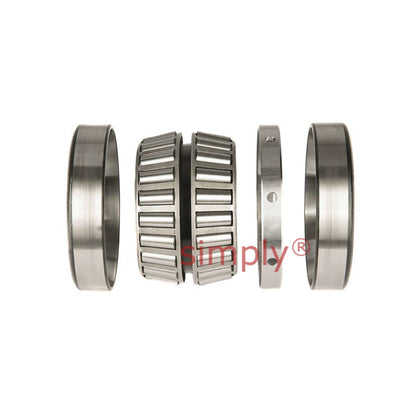

Timken 93788D/93125/Y15S-93125 TDI Double Inner Race Taper Roller Bearing 7.873x12.5x5.25x5.25 inch
Timken 93788D/93125/Y15S-93125 TDI Double Inner Race Taper Roller Bearing 7.873x12.5x5.25x5.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 199.97mm = 7.873 inch
- Outside Diameter:
- 317.5mm = 12.5 (12-1/2) inch
- Width:
- 133.35mm = 5.25 (5-1/4) inch
Technical
Technical
| d | 199.975mm = 7.873 inch |
|---|---|
| D | 317.5mm = 12.5 inch |
| T | 133.35mm = 5.25 inch |
| C | 133.35mm = 5.25 inch |
| Dynamic (1) C1 | 1180000N |
| Factors (5) e | 0.52 |
| Factors (5) Y1 | 1.29 |
| Factors (5) Y2 | 1.92 |
| Dynamic (2) C90 | 175000N |
| Dynamic (2) Ca90 | 157000N |
| Dynamic (2) C90(2) | 306000N |
| Factors (5) K | 1.12 |
| Shaft max shaft fillet radius R (3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter da | 227mm = 8.93 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 286mm = 11.26 inch |
| G1 | 912 |
| G2 | 126 |
| Cg | 0.146 |
