SKU: 96851D/96140/Y4S-96140-TIM

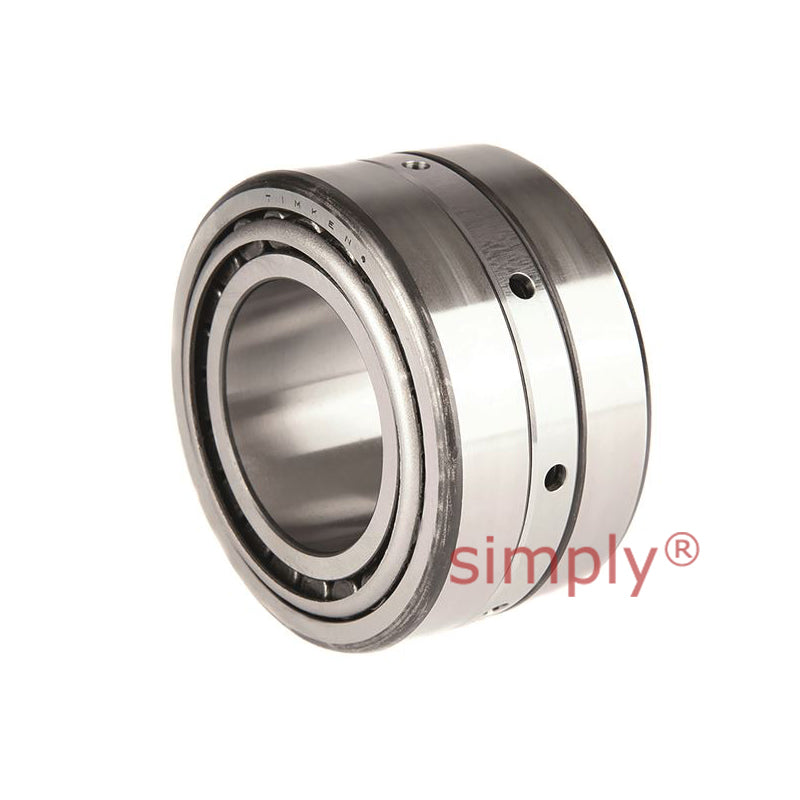

Timken 96851D/96140/Y4S-96140 TDI Double Inner Race Taper Roller Bearing 8.5x14x5x5.125 inch
Timken 96851D/96140/Y4S-96140 TDI Double Inner Race Taper Roller Bearing 8.5x14x5x5.125 inch
Out of stock
Description
Description

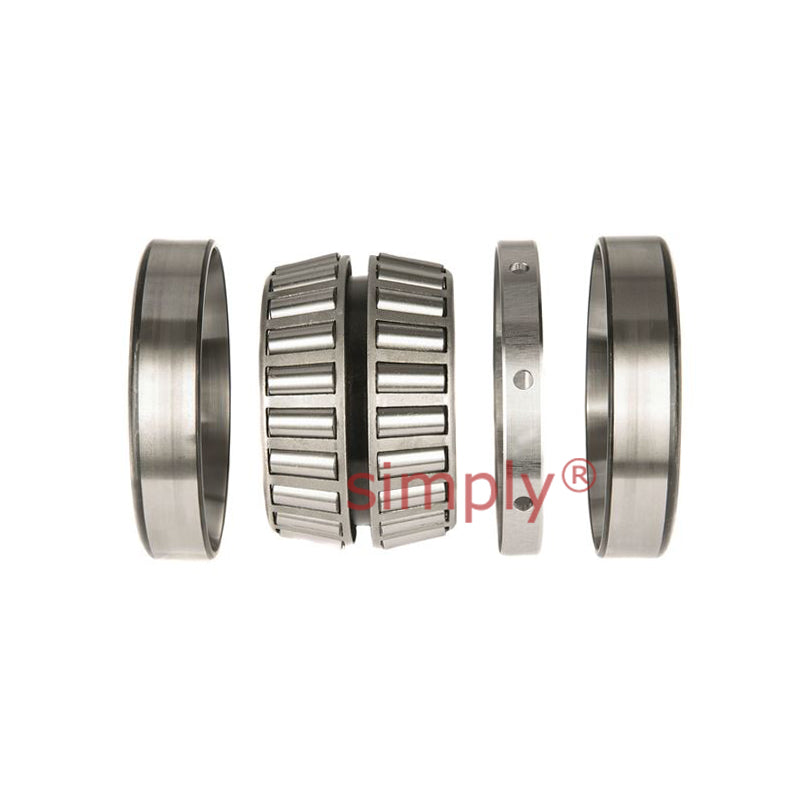

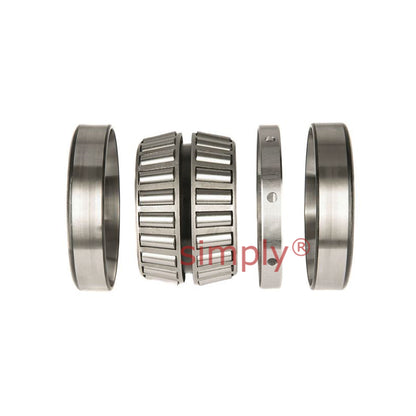

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 215.9mm = 8.5 (8-1/2) inch
- Outside Diameter:
- 355.6mm = 14 inch
- Width:
- 127mm = 5 inch
Technical
Technical
| d | 215.9mm = 8.5 inch |
|---|---|
| D | 355.6mm = 14 inch |
| T | 127mm = 5 inch |
| C | 130.175mm = 5.125 inch |
| Dynamic (1) C1 | 1220000N |
| Factors (5) e | 0.59 |
| Factors (5) Y1 | 1.14 |
| Factors (5) Y2 | 1.7 |
| Dynamic (2) C90 | 182000N |
| Dynamic (2) Ca90 | 184000N |
| Dynamic (2) C90(2) | 317000N |
| Factors (5) K | 0.99 |
| Shaft max shaft fillet radius R (3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter da | 249mm = 9.8 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 318mm = 12.52 inch |
| G1 | 1140 |
| G2 | 160 |
| Cg | 0.1626 |
