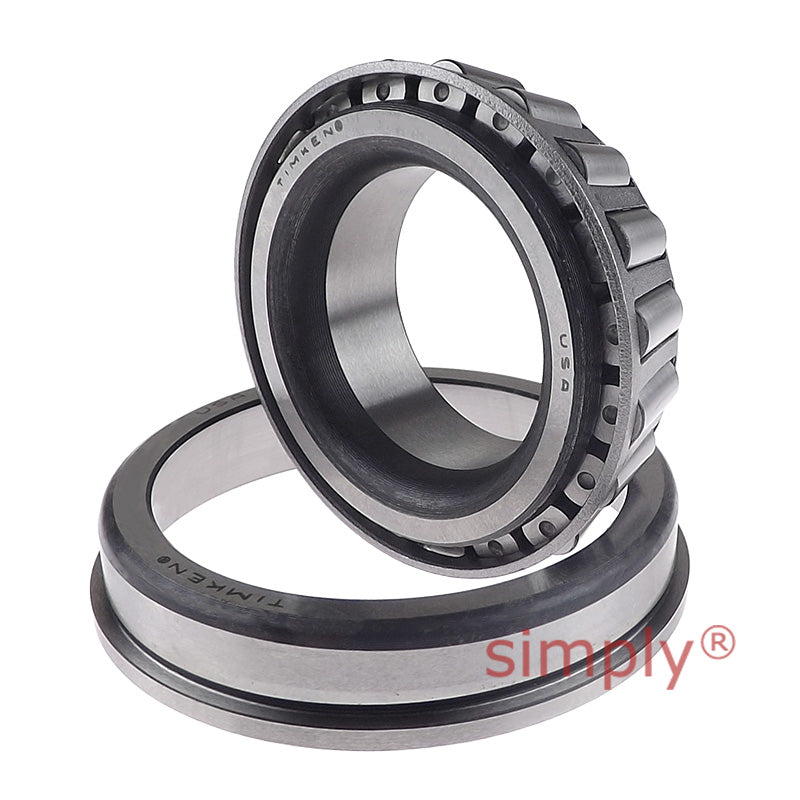

• Timken 99587/99100B TSF Single-Row Taper Roller Bearing 5.875x10x2.675 inch
  • Timken
1 2

SKU: 99587/99100B-TIM

Timken 99587/99100B TSF Single-Row Taper Roller Bearing 5.875x10x2.675 inch

Timken 99587/99100B TSF Single-Row Taper Roller Bearing 5.875x10x2.675 inch
$2,502.29 ex VAT
$2,502.29 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,676.11
20+ $1,581.94
30+ $1,563.11
40+ $1,544.28
50+ $1,525.45
75+ $1,506.61
100+ $1,412.45
200+ $1,393.62
250+ $1,374.78
500+ $1,355.95
1000+ $1,318.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Timken - High Quality
Inside Diameter:
149.23mm = 5.875 (5-7/8) inch
Outside Diameter:
254mm = 10 inch
Width:
67.95mm = 2.675 inch
Technical
d 149.225mm = 5.875 inch
D 254mm = 10 inch
T1 30.163mm = 1.1875 inch
Dynamic (1) C1 611000N
Factors (5) e 0.41
Factors (5) Y 1.47
Dynamic (2) C90 158000N
Dynamic (2) Ca90 110000N
Factors (5) K 1.43
Static Co 1030000N
Bearing B 66.675mm = 2.625 inch
Bearing C 47.625mm = 1.875 inch
Bearing a(3) -12.2mm = -0.48 inch
Bearing D1 264.973mm = 10.432 inch
Bearing C2 11.113mm = 0.4375 inch
Shaft max shaft fillet radius R(4) 7mm = 0.28 inch
Shaft backing shoulder diameter da 165mm = 6.5 inch
Shaft backing shoulder diameter db 178mm = 7.01 inch
Housing backing shoulder diameter Da 238mm = 9.37 inch
G1 556
G2 73.5
Cg 0.1459
