• NAK 9x14.5x5.7mm UIP Polyurethane Rod Seal - Allow 7-10 Days
1 1

SKU: 9x14.5x5.7_UIP_NAK

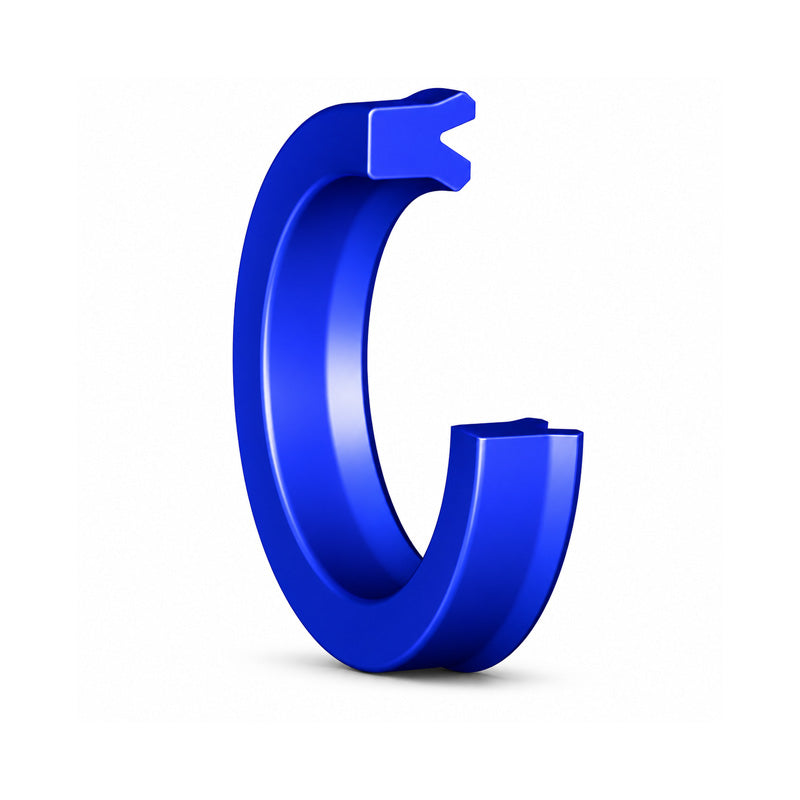

NAK 9x14.5x5.7mm UIP Polyurethane Rod Seal - Allow 7-10 Days

NAK 9x14.5x5.7mm UIP Polyurethane Rod Seal - Allow 7-10 Days
$1.26 ex VAT
$1.26 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.67
19+ $0.57
29+ $0.52
39+ $0.48
49+ $0.38
74+ $0.33
99+ $0.29
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions

Brand / Quality:
NAK - High Quality
Inside Diameter:
9mm
Outside Diameter:
14.5mm
Length:
5.7mm
Material:
Polyurethane
Style:
UIP
Colour:
Blue
Technical
d 9mm
D 14.5mm
L 6.7mm
h 5.7mm
C 1.5mm
Inside Diameter Tolerance f8
Outside Diameter Tolerance H10
Length Tolerance 0.2mm
Pressure (max) 40 Mpa
Sliding Speed (max) 0.5 m/s
Temperature -40 Deg C to +100 Deg C
Colour Blue
