SKU: AELPFL201-NTN

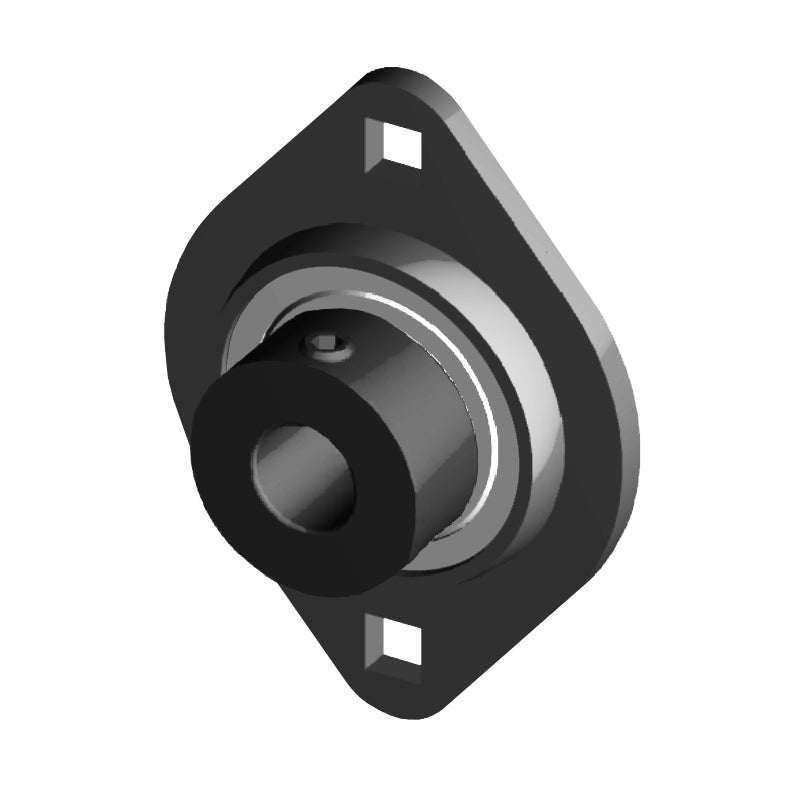

NTN AELPFL201 Metric Two Bolt Oval Pressed Steel Bearing Housing with 12mm Eccentric Collar Insert - Allow 2-3 Days

NTN AELPFL201 Metric Two Bolt Oval Pressed Steel Bearing Housing with 12mm Eccentric Collar Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 12mm
H 81mm
J 63.5mm
A<sub>1</sub> 4mm
N 7.1mm
A 14mm
L 59mm
B<sub>1</sub> 28.6mm
S 6.5mm
H<sub>1</sub> 49mm
Fixing bolt M6
--- Load rating
Max load recommended radial 2700 N
Max load recommended axial 1350 N
--- Unit information
Mass 0.2 kg
