SKU: AELPFL206-101-NTN

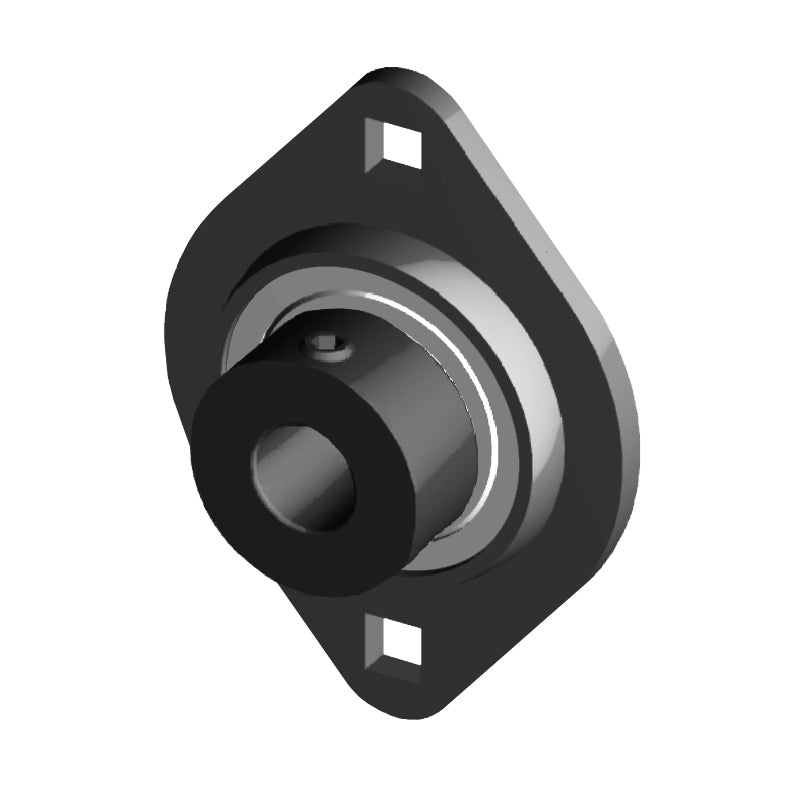

NTN AELPFL206-101 Imperial Two Bolt Oval Pressed Steel Bearing Housing with 1-1/16 inch Eccentric Collar Insert - Allow 2-3 Days
NTN AELPFL206-101 Imperial Two Bolt Oval Pressed Steel Bearing Housing with 1-1/16 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
|
AELPFL200 Series 2 Bolt Pressed Steel Oval Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing the insert to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Style:
- AELPFL
- Bolt Hole Centres:
- 3-9/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/16 inch |
| H | 4-7/16 inch |
| J | 3-9/16 inch |
| A<sub>1</sub> | 0.205 inch |
| N | 7/16 inch |
| A | 23/32 inch |
| L | 3-5/16 inch |
| B<sub>1</sub> | 1.406 inch |
| S | 0.354 inch |
| H<sub>1</sub> | 2-51/64 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Max load recommended radial | 1100 lbf |
| Max load recommended axial | 550 lbf |
| --- | Unit information |
| Mass | 1.1 lbs |
