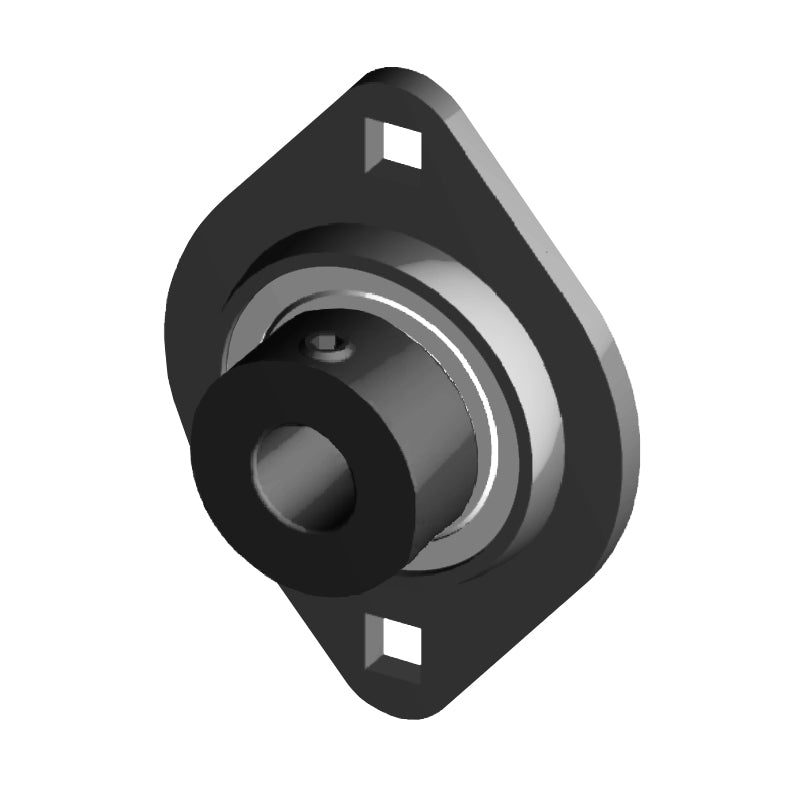

NTN AELPFL207W3 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

NTN AELPFL207W3 Metric Two Bolt Oval Pressed Steel Bearing Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
H 122mm
J 100mm
A<sub>1</sub> 5.2mm
N 11mm
A 20mm
L 94mm
B<sub>1</sub> 38.9mm
S 9.5mm
H<sub>1</sub> 81mm
Fixing bolt M10
--- Load rating
Max load recommended radial 6000 N
Max load recommended axial 3000 N
--- Unit information
Mass 0.7 kg
