SKU: AH2236G-MB

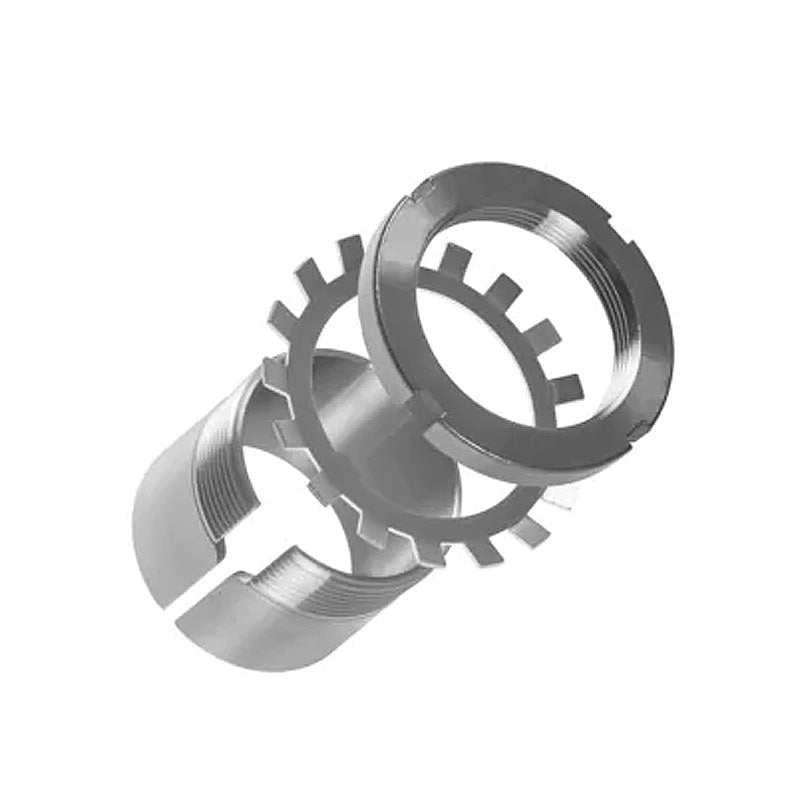

Major Branded AH2236G Withdrawal Sleeve for 170mm shaft
- Regular price
- $482.22 ex VAT
- Sale price
- $482.22
- Regular price
-
Not in stock
Quantity Price Breaks
10
$429.18
19
$405.06
29
$400.24
39
$395.42
49
$390.60
74
$385.78
99
$361.67
199
$356.84
249
$352.02
499
$347.20
999
$337.55
SKU:
AH2236G-MB
Major Branded AH2236G Withdrawal Sleeve for 170mm shaft
- Regular price
- $482.22 ex VAT
- Sale price
- $482.22
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 170mm |
| d | = | 180mm |
| B1 | = | 105mm |
| B2 | = | 110mm |
| G | = | Thread 190x3mm |
| G1 | = | 17mm |
| Weight | = | 3.4 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH2236G |
| Nut | = | KM38 |
| Hydraulic nut | = | HMV38E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22236K+taper> | = | 22236K< |
| /a> | = |
