SKU: AH24122-MB

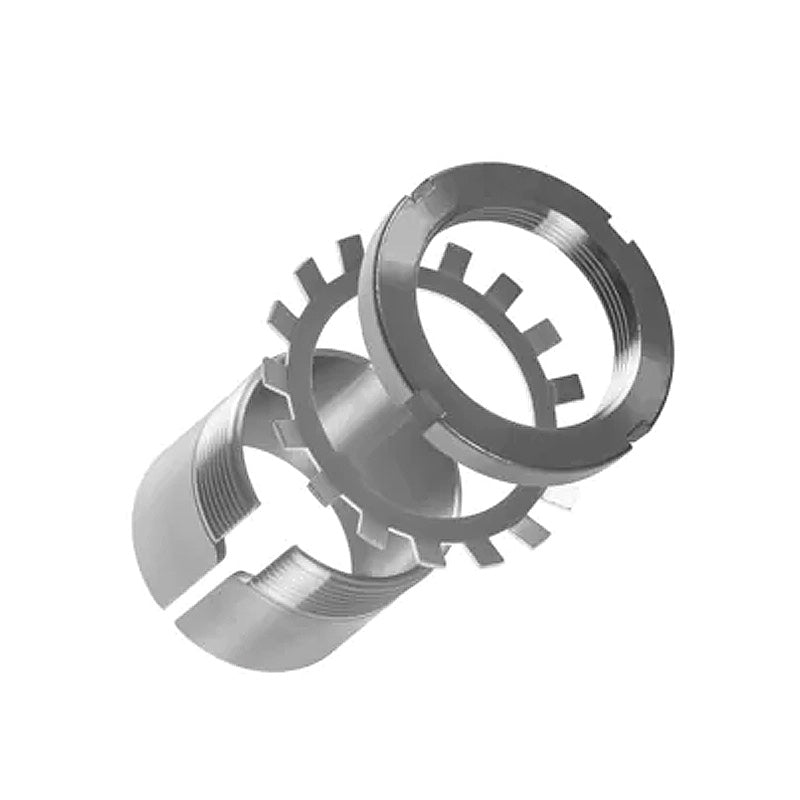

Major Branded AH24122 Withdrawal Sleeve for 105mm shaft
- Regular price
- $252.57 ex VAT
- Sale price
- $252.57
- Regular price
-
Not in stock
Quantity Price Breaks
10
$224.79
19
$212.16
29
$209.63
39
$207.11
49
$204.58
74
$202.06
99
$189.43
199
$186.90
249
$184.38
499
$181.85
999
$176.80
SKU:
AH24122-MB
Major Branded AH24122 Withdrawal Sleeve for 105mm shaft
- Regular price
- $252.57 ex VAT
- Sale price
- $252.57
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 105mm |
| d | = | 110mm |
| B1 | = | 82mm |
| B2 | = | 91mm |
| G | = | Thread 115x2mm |
| G1 | = | 13mm |
| Weight | = | 0.71 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24122 |
| Nut | = | KM23 |
| Hydraulic nut | = | HMV23E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24122K+taper> | = | 24122K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4122K30V+taper> | = | C4122K30V< |
| /a> | = |
