SKU: AH24128-MB

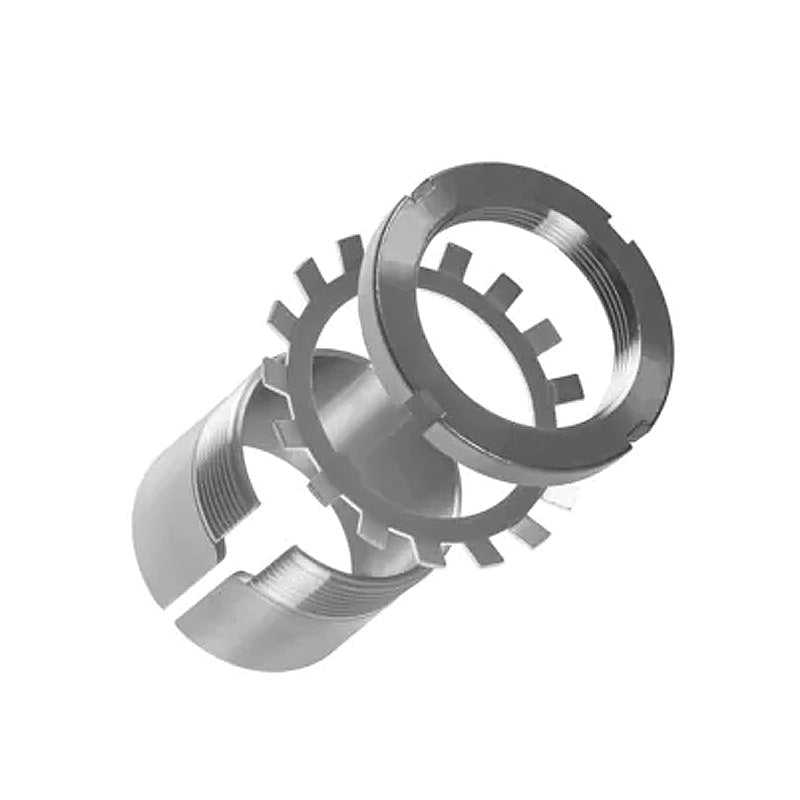

Major Branded AH24128 Withdrawal Sleeve for 135mm shaft
- Regular price
- $380.18 ex VAT
- Sale price
- $380.18
- Regular price
-
Not in stock
Quantity Price Breaks
10
$338.36
19
$319.35
29
$315.55
39
$311.75
49
$307.95
74
$304.14
99
$285.14
199
$281.33
249
$277.53
499
$273.73
999
$266.13
SKU:
AH24128-MB
Major Branded AH24128 Withdrawal Sleeve for 135mm shaft
- Regular price
- $380.18 ex VAT
- Sale price
- $380.18
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 135mm |
| d | = | 140mm |
| B1 | = | 99mm |
| B2 | = | 109mm |
| G | = | Thread 150x2mm |
| G1 | = | 14mm |
| Weight | = | 1.3 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH24128 |
| Nut | = | KM30 |
| Hydraulic nut | = | HMV30E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24128K+taper> | = | 24128K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C4128K+taper> | = | C4128K< |
| /a> | = |
