SKU: AH3032-MB

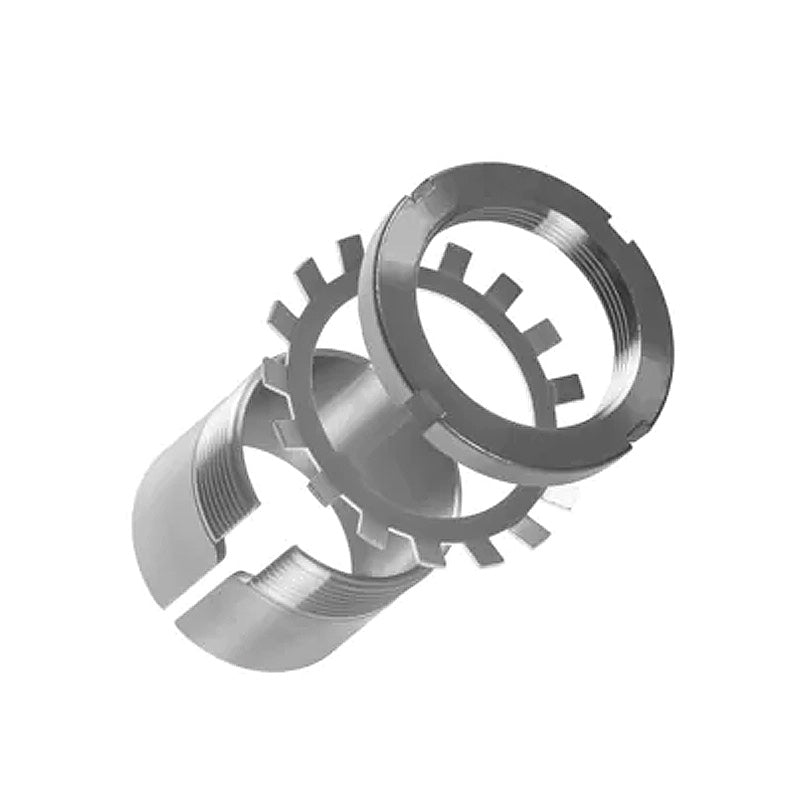

Major Branded AH3032 Withdrawal Sleeve for 150mm shaft
- Regular price
- $357.25 ex VAT
- Sale price
- $357.25
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
$317.95
19
$300.09
29
$296.52
39
$292.95
49
$289.37
74
$285.80
99
$267.94
199
$264.37
249
$260.79
499
$257.22
999
$250.08
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 150mm |
| d | = | 160mm |
| B1 | = | 77mm |
| B2 | = | 82mm |
| G | = | Thread 170x3mm |
| G1 | = | 16mm |
| Weight | = | 2 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AH3032 |
| Nut | = | KM34 |
| Hydraulic nut | = | HMV34E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23032K+taper> | = | 23032K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C3032K+taper> | = | C3032K< |
| /a> | = |
