• Major Branded AH308 Withdrawal Sleeve for 35mm shaft
1 1

SKU: AH308-MB

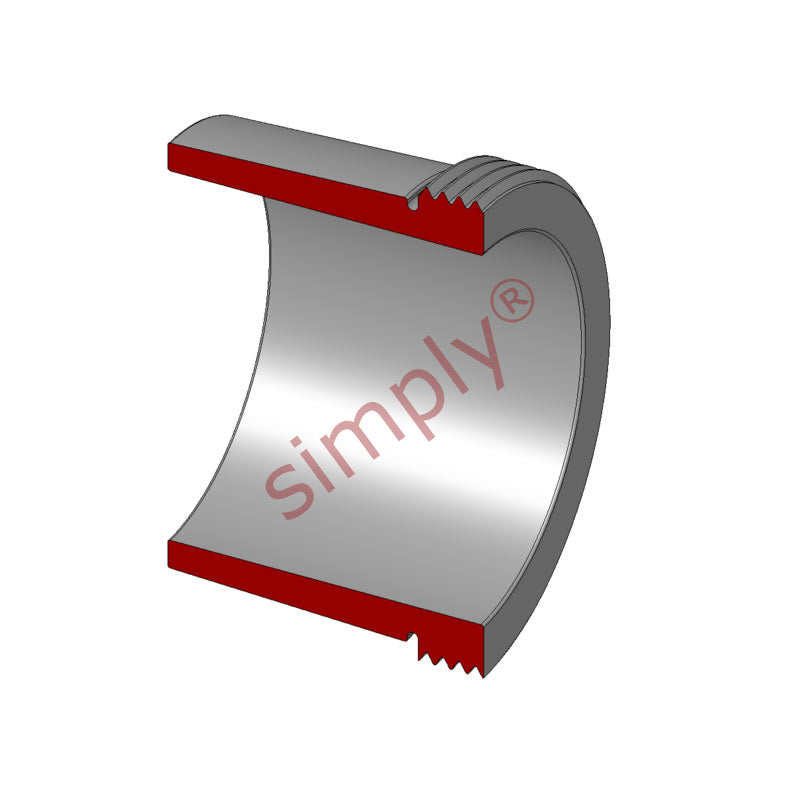

Major Branded AH308 Withdrawal Sleeve for 35mm shaft

Major Branded AH308 Withdrawal Sleeve for 35mm shaft
$111.80 ex VAT
$111.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $74.89
19+ $70.68
29+ $69.84
39+ $69.00
49+ $68.16
74+ $67.31
99+ $63.11
199+ $62.27
249+ $61.42
499+ $60.58
999+ $58.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
35mm
Outside Diameter:
40mm
Width:
29mm
Technical
--- Dimensions
d1 35mm
d 40mm
B1 29mm
B2 32mm
G Thread 45x1.5mm
G1 6mm
Weight 0.09 kg
--- Assembly Parts
Sleeve AH308
Nut KM9
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2208K+taper>2208K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1308K+taper>1308K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22208K+taper>22208K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21308K+taper>21308K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2208KTN9+taper>C2208KTN9</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2208KV+taper>C2208KV</a>
