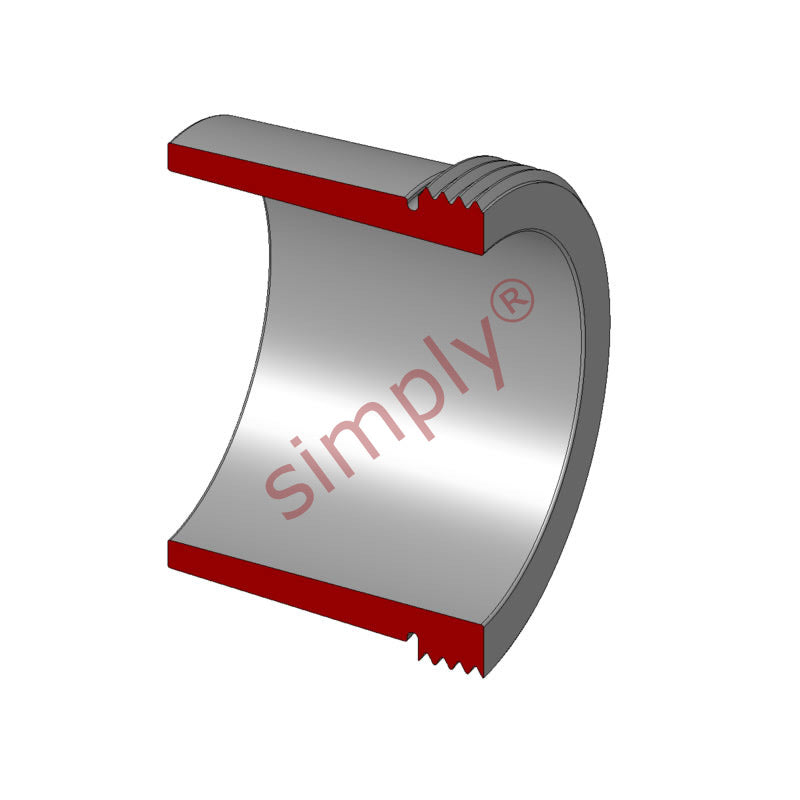

• Major Branded AH309 Withdrawal Sleeve for 40mm shaft
1 1

SKU: AH309-MB

Major Branded AH309 Withdrawal Sleeve for 40mm shaft

Major Branded AH309 Withdrawal Sleeve for 40mm shaft
$114.20 ex VAT
$114.20 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.50
19+ $72.20
29+ $71.34
39+ $70.48
49+ $69.62
74+ $68.76
99+ $64.46
199+ $63.60
249+ $62.74
499+ $61.88
999+ $60.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
40mm
Outside Diameter:
45mm
Width:
31mm
Technical
--- Dimensions
d1 40mm
d 45mm
B1 31mm
B2 34mm
G Thread 50x1.5mm
G1 6mm
Weight 0.12 kg
--- Assembly Parts
Sleeve AH309
Nut KM10
Hydraulic nut HMV10E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2209K+taper>2209K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1309K+taper>1309K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22209K+taper>22209K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21309K+taper>21309K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209KTN9+taper>C2209KTN9</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209KV+taper>C2209KV</a>
