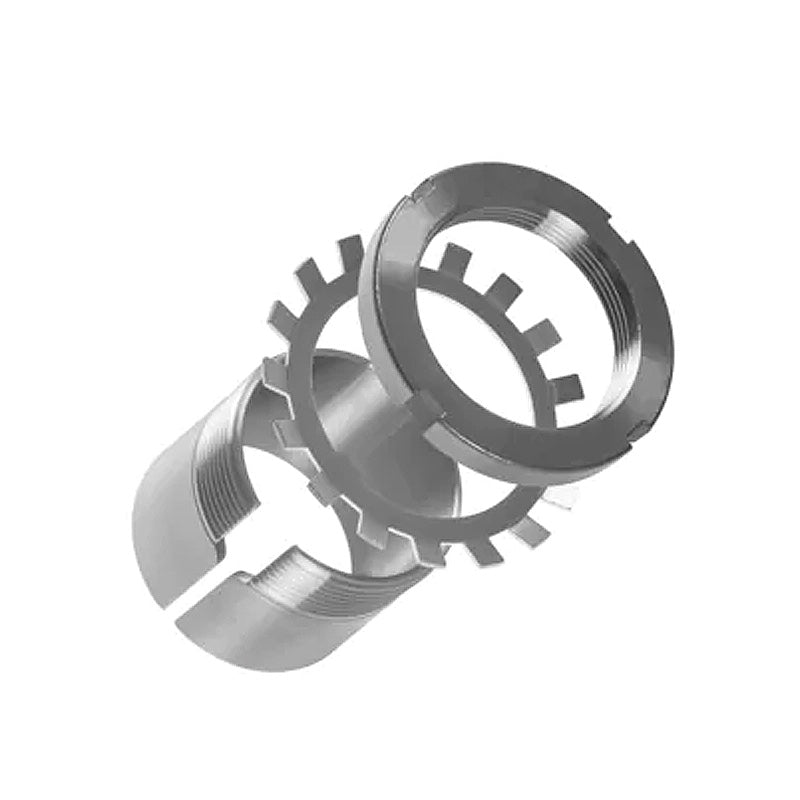

• Major Branded AH316 Withdrawal Sleeve for 75mm shaft
1 1

SKU: AH316-MB

Major Branded AH316 Withdrawal Sleeve for 75mm shaft

Major Branded AH316 Withdrawal Sleeve for 75mm shaft
$104.48 ex VAT
$104.48 ex VAT
Sale Sold out

In stock

Price Break
10+ $69.98
19+ $66.05
29+ $65.26
39+ $64.48
49+ $63.69
74+ $62.91
99+ $58.97
199+ $58.19
249+ $57.40
499+ $56.61
999+ $55.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
75mm
Outside Diameter:
80mm
Width:
48mm
Technical
--- Dimensions
d1 75mm
d 80mm
B1 48mm
B2 52mm
G Thread 90x2mm
G1 8mm
Weight 0.37 kg
--- Assembly Parts
Sleeve AH316
Nut KM18
Hydraulic nut HMV18E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2216K+taper>2216K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1316K+taper>1316K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22216K+taper>22216K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21316K+taper>21316K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2216K+taper>C2216K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2216KV+taper>C2216KV</a>
