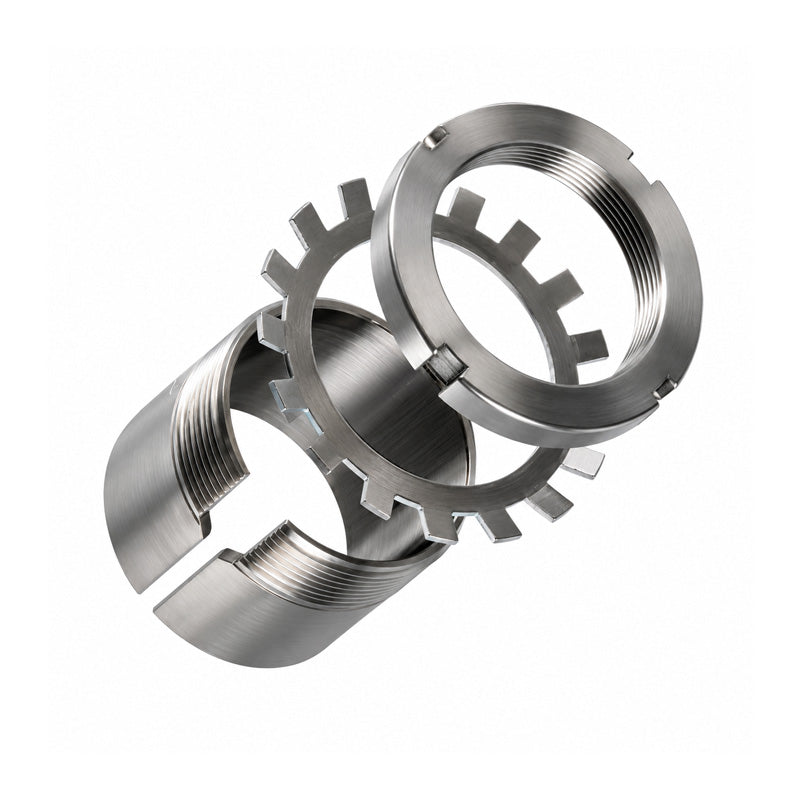

• SKF AHX2315G Withdrawal Sleeve for 70mm shaft
1 1

SKU: AHX2315G-SKF

SKF AHX2315G Withdrawal Sleeve for 70mm shaft

SKF AHX2315G Withdrawal Sleeve for 70mm shaft
$100.48 ex VAT
$100.48 ex VAT
Sale Sold out

In stock

Price Break
2+ $67.30
5+ $63.52
10+ $62.76
20+ $62.01
49+ $61.25
74+ $60.49
99+ $56.71
199+ $55.96
249+ $55.20
499+ $54.44
999+ $52.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
70mm
Outside Diameter:
75mm
Width:
68mm
Technical
--- Dimensions
d1 70mm
d 75mm
B1 68mm
B2 72mm
G Thread 80x2mm
G1 12mm
Weight 0.48 kg
--- Assembly Parts
Sleeve AHX2315G
Nut KM16
Hydraulic Nut HMV16E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2315K+taper>2315K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22315K+taper>22315K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2315K+taper>C2315K</a>
