SKU: AHX2317-MB

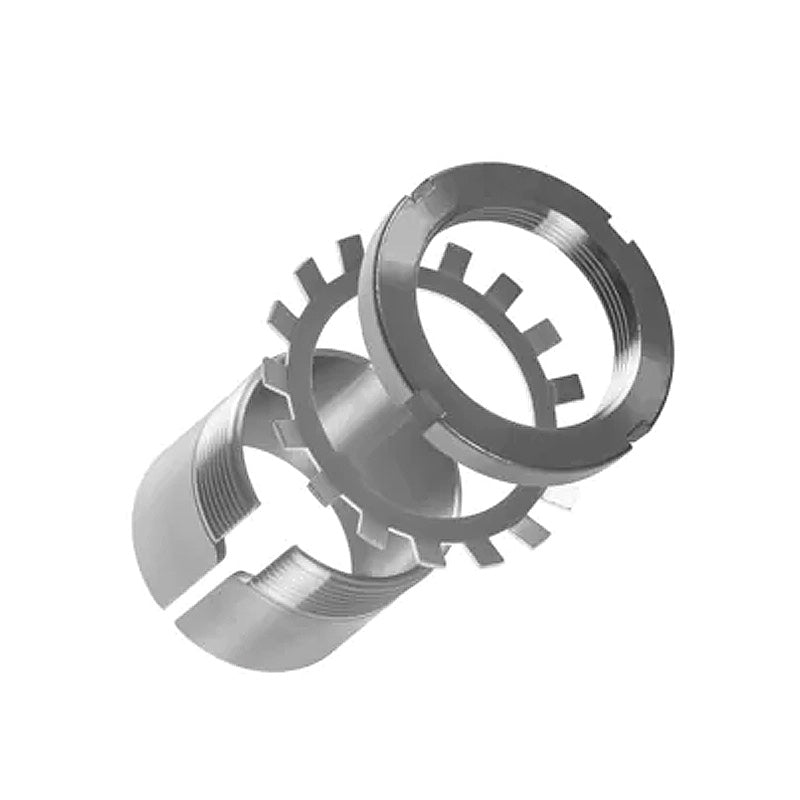

Major Branded AHX2317 Withdrawal Sleeve for 80mm shaft
- Regular price
- $103.38 ex VAT
- Sale price
- $103.38
- Regular price
-
Not in stock
Quantity Price Breaks
10
$92.01
19
$86.84
29
$85.81
39
$84.77
49
$83.74
74
$82.70
99
$77.54
199
$76.50
249
$75.47
499
$74.43
999
$72.37
SKU:
AHX2317-MB
Major Branded AHX2317 Withdrawal Sleeve for 80mm shaft
- Regular price
- $103.38 ex VAT
- Sale price
- $103.38
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 80mm |
| d | = | 85mm |
| B1 | = | 74mm |
| B2 | = | 78mm |
| G | = | Thread 95x2mm |
| G1 | = | 13mm |
| Weight | = | 0.65 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AHX2317 |
| Nut | = | KM19 |
| Hydraulic nut | = | HMV19E |
| --- | = | Matching Self Aligning Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2317K+taper> | = | 2317K< |
| /a> | = | |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22317K+taper> | = | 22317K< |
| /a> | = | |
| --- | = | Matching Carb Toroidal Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=C2317K+taper> | = | C2317K< |
| /a> | = |
