• Major Branded AHX2322G Withdrawal Sleeve for 105mm shaft
1 1

SKU: AHX2322G-MB

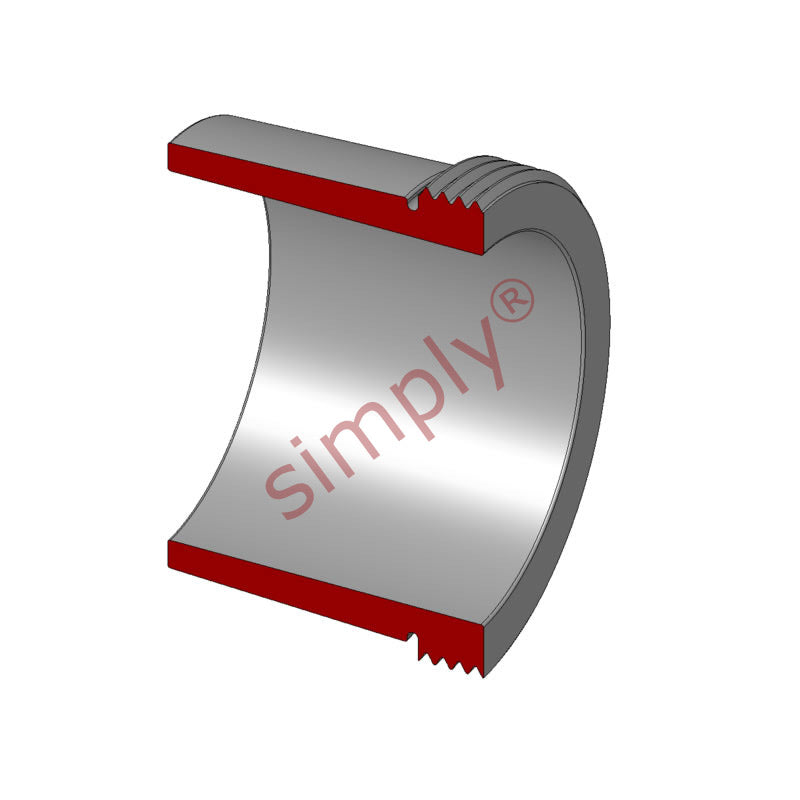

Major Branded AHX2322G Withdrawal Sleeve for 105mm shaft

Major Branded AHX2322G Withdrawal Sleeve for 105mm shaft
$169.83 ex VAT
$169.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $113.76
19+ $107.37
29+ $106.09
39+ $104.81
49+ $103.54
74+ $102.26
99+ $95.87
199+ $94.59
249+ $93.31
499+ $92.03
999+ $89.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
105mm
Outside Diameter:
110mm
Width:
98mm
Technical
--- Dimensions
d1 105mm
d 110mm
B1 98mm
B2 102mm
G Thread 120x2mm
G1 16mm
Weight 1.3 kg
--- Assembly Parts
Sleeve AHX2322G
Nut KM24
Hydraulic nut HMV24E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2322K+taper>2322K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22322K+taper>22322K</a>
