• Major Branded AHX3124 Withdrawal Sleeve for 115mm shaft
1 1

SKU: AHX3124-MB

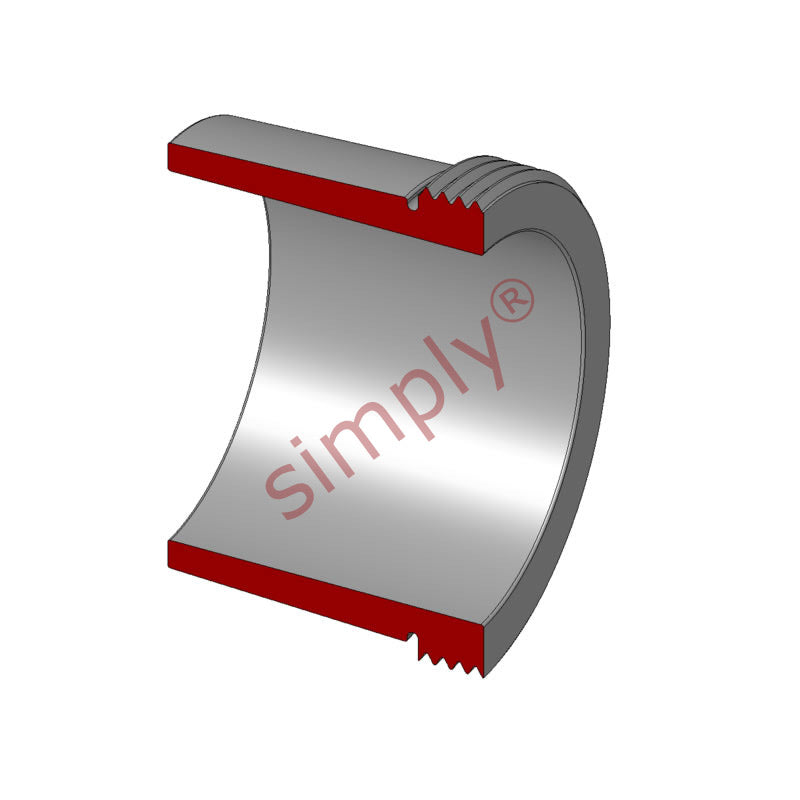

Major Branded AHX3124 Withdrawal Sleeve for 115mm shaft

Major Branded AHX3124 Withdrawal Sleeve for 115mm shaft
$185.41 ex VAT
$185.41 ex VAT
Sale Sold out

In stock

Price Break
10+ $124.19
19+ $117.22
29+ $115.82
39+ $114.42
49+ $113.03
74+ $111.63
99+ $104.66
199+ $103.26
249+ $101.87
499+ $100.47
999+ $97.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
115mm
Outside Diameter:
120mm
Width:
75mm
Technical
--- Dimensions
d1 115mm
d 120mm
B1 75mm
B2 79mm
G Thread 130x2mm
G1 12mm
Weight 0.94 kg
--- Assembly Parts
Sleeve AHX3124
Nut KM26
Hydraulic nut HMV26E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23124K+taper>23124K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22224K+taper>22224K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2224K+taper>C2224K</a>
