• Major Branded AHX3130G Withdrawal Sleeve for 145mm shaft
1 1

SKU: AHX3130G-MB

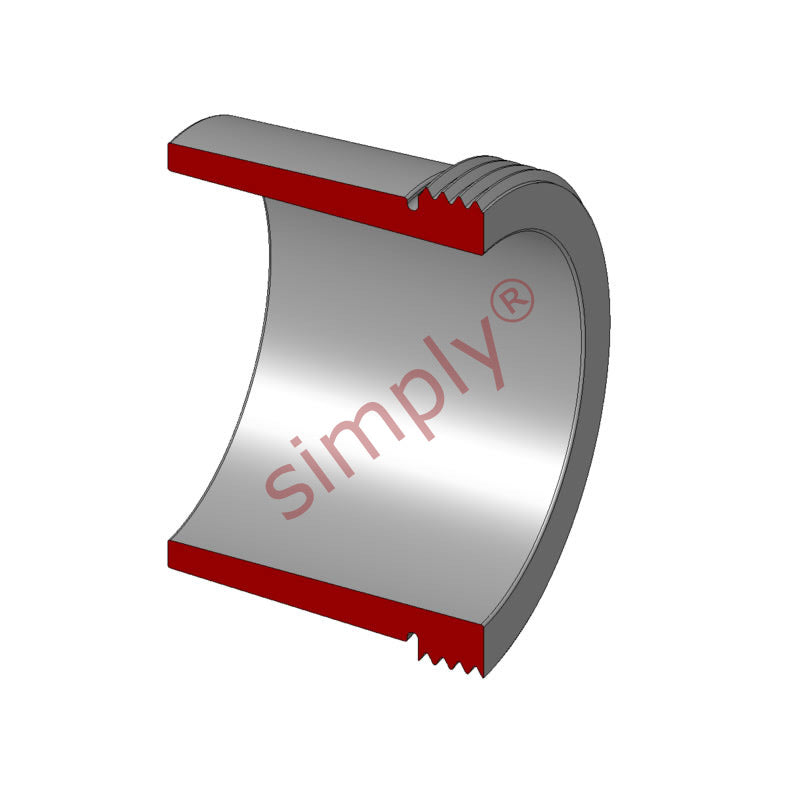

Major Branded AHX3130G Withdrawal Sleeve for 145mm shaft

Major Branded AHX3130G Withdrawal Sleeve for 145mm shaft
$388.27 ex VAT
$388.27 ex VAT
Sale Sold out

In stock

Price Break
10+ $260.07
19+ $245.46
29+ $242.54
39+ $239.62
49+ $236.69
74+ $233.77
99+ $219.16
199+ $216.24
249+ $213.32
499+ $210.40
999+ $204.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
145mm
Outside Diameter:
150mm
Width:
96mm
Technical
--- Dimensions
d1 145mm
d 150mm
B1 96mm
B2 101mm
G Thread 160x3mm
G1 15mm
Weight 1.7 kg
--- Assembly Parts
Sleeve AHX3130G
Nut KM32
Hydraulic nut HMV32E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23130K+taper>23130K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22230K+taper>22230K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3130K+taper>C3130K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2230K+taper>C2230K</a>
