• Major Branded AHX317 Withdrawal Sleeve for 80mm shaft
1 1

SKU: AHX317-MB

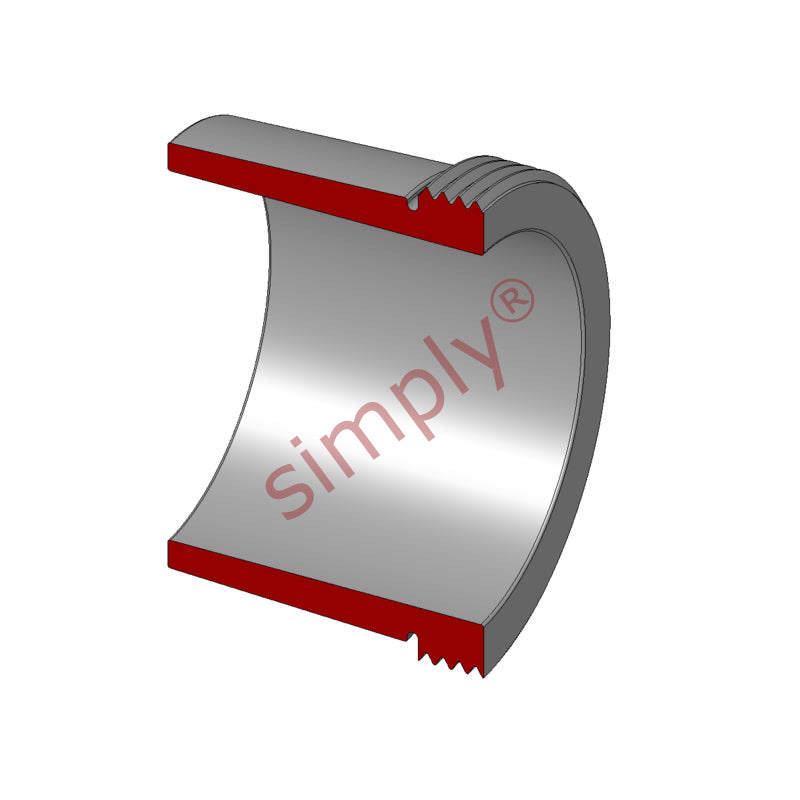

Major Branded AHX317 Withdrawal Sleeve for 80mm shaft

Major Branded AHX317 Withdrawal Sleeve for 80mm shaft
$88.23 ex VAT
$88.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $59.10
19+ $55.78
29+ $55.12
39+ $54.45
49+ $53.79
74+ $53.12
99+ $49.80
199+ $49.14
249+ $48.48
499+ $47.81
999+ $46.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
80mm
Outside Diameter:
85mm
Width:
52mm
Technical
--- Dimensions
d1 80mm
d 85mm
B1 52mm
B2 56mm
G Thread 95x2mm
G1 9mm
Weight 0.43 kg
--- Assembly Parts
Sleeve AHX317
Nut KM19
Hydraulic nut HMV19E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2217K+taper>2217K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1317K+taper>1317K</a>
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22217K+taper>22217K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21317K+taper>21317K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2217K+taper>C2217K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2217KV+taper>C2217KV</a>
