• Major Branded AHX3224G Withdrawal Sleeve for 115mm shaft
1 1

SKU: AHX3224G-MB

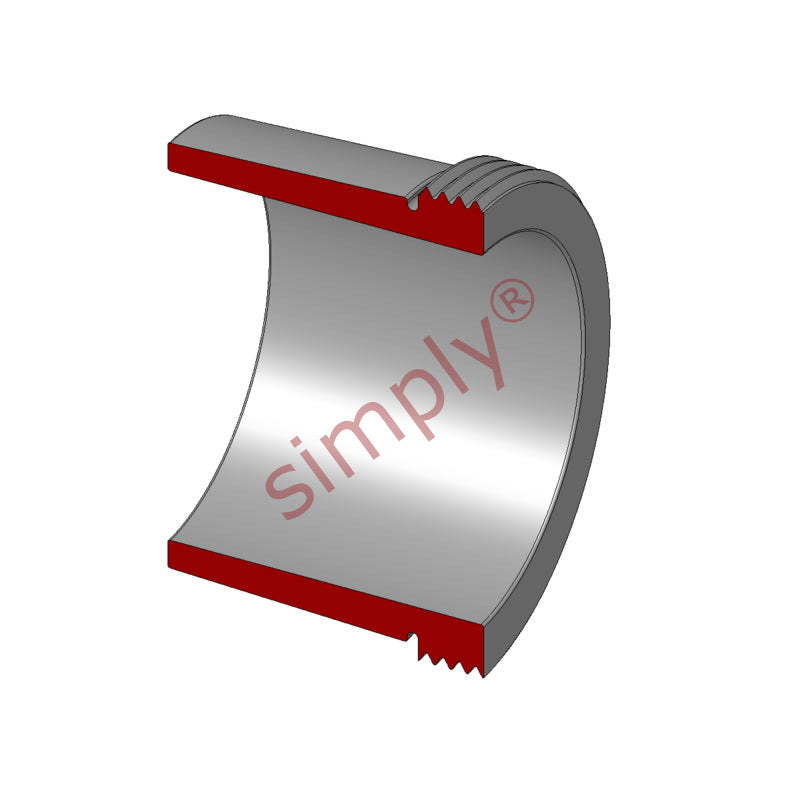

Major Branded AHX3224G Withdrawal Sleeve for 115mm shaft

Major Branded AHX3224G Withdrawal Sleeve for 115mm shaft
$259.24 ex VAT
$259.24 ex VAT
Sale Sold out

In stock

Price Break
10+ $173.64
19+ $163.89
29+ $161.94
39+ $159.99
49+ $158.04
74+ $156.08
99+ $146.33
199+ $144.38
249+ $142.43
499+ $140.48
999+ $136.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
115mm
Outside Diameter:
120mm
Width:
90mm
Technical
--- Dimensions
d1 115mm
d 120mm
B1 90mm
B2 94mm
G Thread 130x2mm
G1 13mm
Weight 1.3 kg
--- Assembly Parts
Sleeve AHX3224G
Nut KM26
Hydraulic nut HMV26E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23224K+taper>23224K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3224K+taper>C3224K</a>
