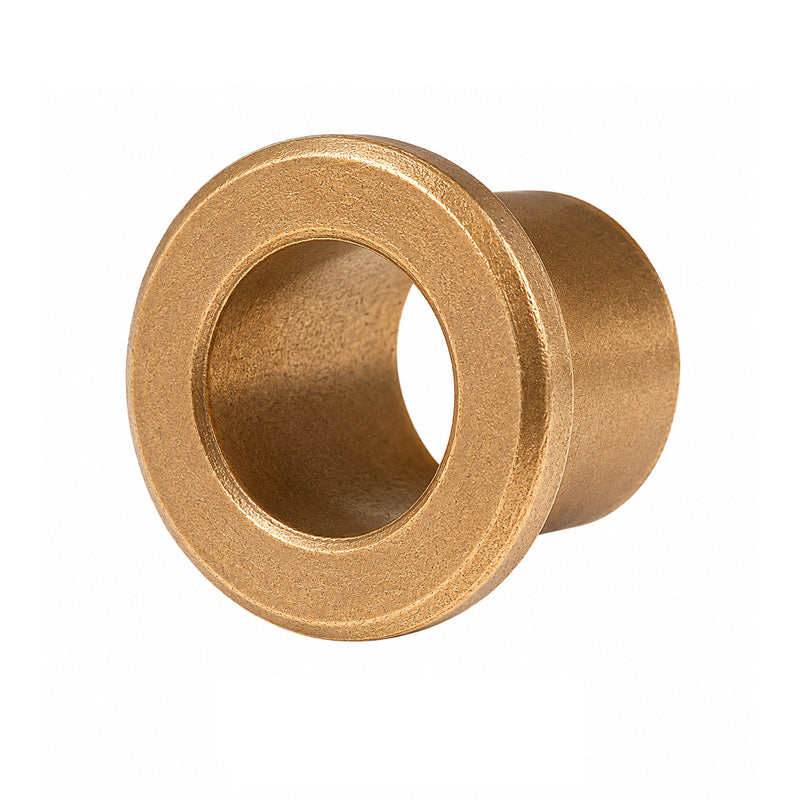

• AL5060-35 Metric Oil Filled Bronze Flanged Bush 50x60x35mm
1 1

SKU: AL.5060-35.FL

AL5060-35 Metric Oil Filled Bronze Flanged Bush 50x60x35mm

AL5060-35 Metric Oil Filled Bronze Flanged Bush 50x60x35mm
$35.29 ex VAT
$35.29 ex VAT
Sale Sold out

Low stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
50mm
Outside Diameter:
60mm
Length:
35mm
Technical
Basic Dia d 50mm
Min I/d 50.009mm
Max I/d 50.048mm
Basic O/D 60mm
Min O/D 60.053mm
Max O/D 60.099mm
Dia F 70mm
Width e 5mm
Length L 35mm
Length Min 34.805mm
Length Max 35.195mm
Flange Thickness Tolerance Min 4.91mm
Flange Thickness Tolerance Max 5.09mm
Flange Diameter Tolerance Min 69.77mm
Flange Diameter Tolerance Max 70.23mm
Recommended Housing Size Min 60mm
Recommended Housing Size Max 60.03mm
Shaft Diameter Min 49.95mm
Shaft Diameter Max 49.975mm
Fitting Pin Size Min 50.009mm
Fitting Pin Size Max 50.02mm
Concentricity Min 0.12mm
Concentricity Max 0.12mm
Inside Diameter When Fitted Min 50mm
Inside Diameter When Fitted Max 50.025mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
