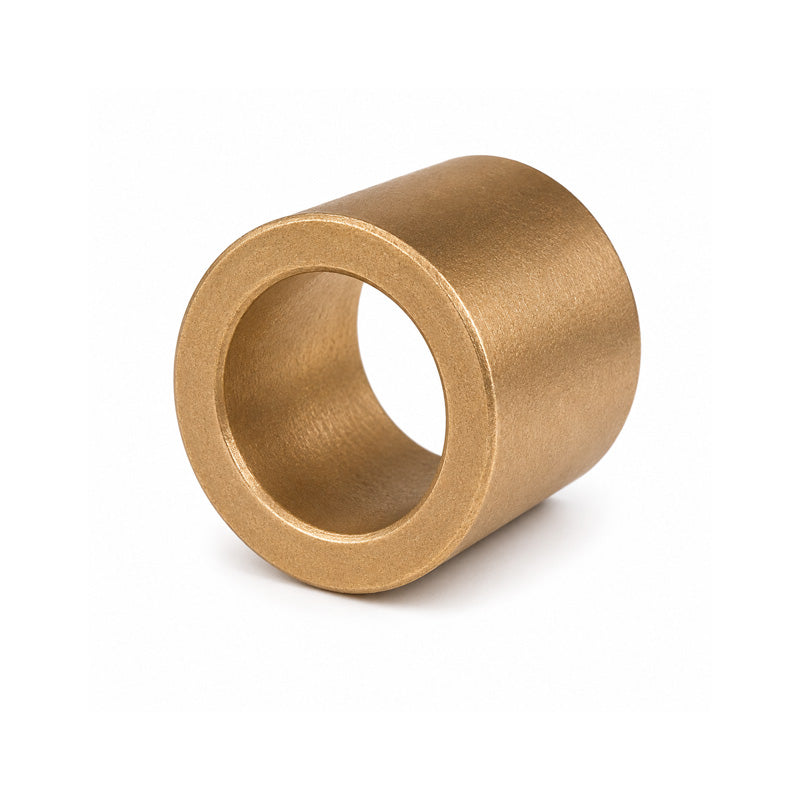

• AM2028-30 Oil Filled Bronze Plain Bush 20x28x30mm
1 1

SKU: AM.2028-30.PL

AM2028-30 Oil Filled Bronze Plain Bush 20x28x30mm

AM2028-30 Oil Filled Bronze Plain Bush 20x28x30mm
$8.80 ex VAT
$8.80 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
20mm
Outside Diameter:
28mm
Length:
30mm
Technical
Basic Dia d 20mm
Min I/d 20.007mm
Max I/d 20.028mm
Basic O/D 28mm
Min O/D 28.035mm
Max O/D 28.056mm
Length L 30mm
Min Length 29.835mm
Max Length 30.165mm
Recommended Housing Size Min 28mm
Recommended Housing Size Max 28.021mm
Shaft Diameter Min 19.959mm
Shaft Diameter Max 19.98mm
Fitting Pin Size Min 20.008mm
Fitting Pin Size Max 20.017mm
Concentricity Max 0.052mm
Inside Diameter When Fitted Min 20mm
Inside Diameter When Fitted Max 20.021mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
