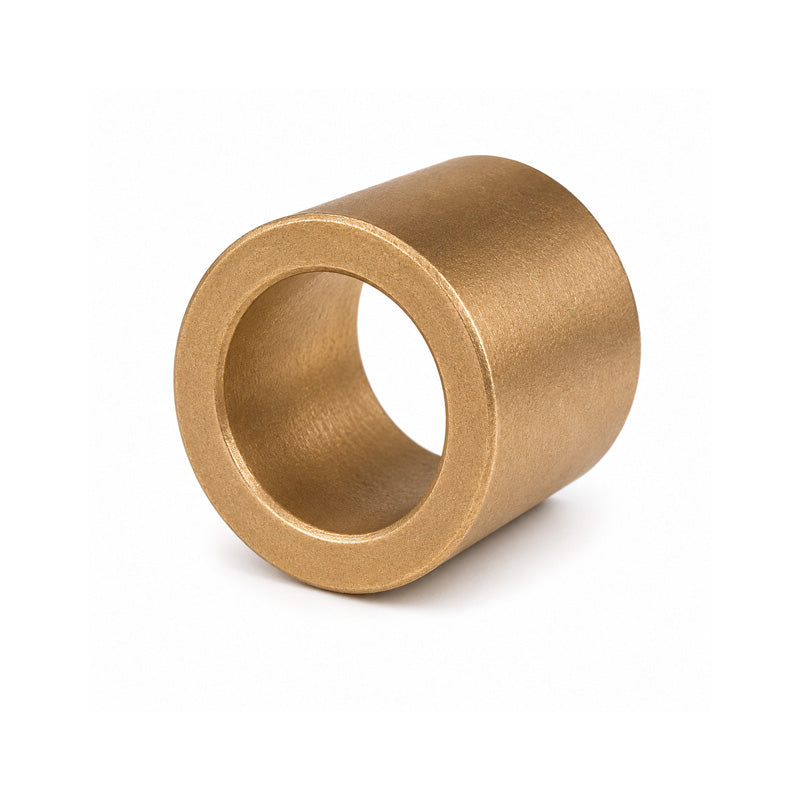

AM2232-30 Oil Filled Bronze Plain Bush 22x32x30mm

Name: AM2232-30 Oil Filled Bronze Plain Bush 22x32x30mm
Brand: Oilite
SKU: AM.2232-30.PL
Price: 10.28 USD
Availability: InStock

$10.28 ex VAT

Sale Sold out

In stock

Price Break

5+ $7.66

10+ $7.35

20+ $7.20

50+ $6.97

100+ $6.81

500+ $6.42

1000+ $5.42

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Basic Dia d	22mm
Min I/d	22.007mm
Max I/d	22.028mm
Basic O/D	32mm
Min O/D	32.043mm
Max O/D	32.068mm
Length L	30mm
Min Length	29.835mm
Max Length	30.165mm
Recommended Housing Size Min	32mm
Recommended Housing Size Max	32.025mm
Shaft Diameter Min	21.959mm
Shaft Diameter Max	21.98mm
Fitting Pin Size Min	22.008mm
Fitting Pin Size Max	22.017mm
Concentricity Max	0.062mm
Inside Diameter When Fitted Min	22mm
Inside Diameter When Fitted Max	22.021mm
Max PV	1.8 N/mm squared x m/s
Max Dynamic Load	14 N/mm squared
Operating Temperature	-60 to 200 Deg C
Radial Crushing Strength	160 K Min M/mm squared
Max Static Load	50 N/mm squared
Max Sliding Speed	5 m/s
Density	6.6 g/cm cubed
