• AM2836-30 Oil Filled Bronze Plain Bush 28x36x30mm
1 1

SKU: AM.2836-30.PL

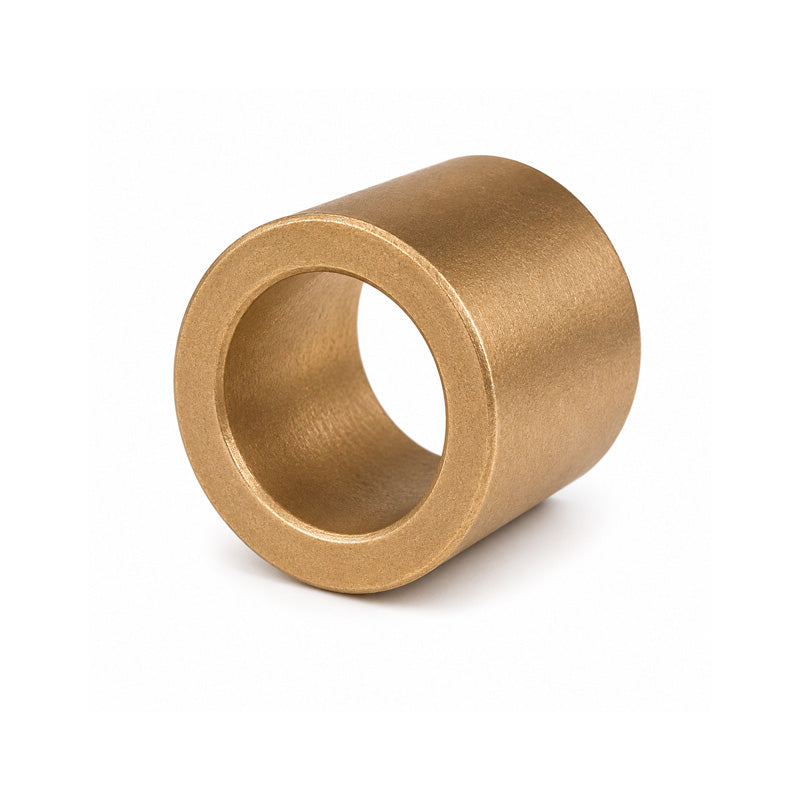

AM2836-30 Oil Filled Bronze Plain Bush 28x36x30mm

AM2836-30 Oil Filled Bronze Plain Bush 28x36x30mm
$10.28 ex VAT
$10.28 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
28mm
Outside Diameter:
36mm
Length:
30mm
Technical
Basic Dia d 28mm
Min I/d 28.007mm
Max I/d 28.028mm
Basic O/D 36mm
Min O/D 36.043mm
Max O/D 36.068mm
Length L 30mm
Min Length 29.835mm
Max Length 30.165mm
Recommended Housing Size Min 36mm
Recommended Housing Size Max 36.025mm
Shaft Diameter Min 27.959mm
Shaft Diameter Max 27.98mm
Fitting Pin Size Min 28.008mm
Fitting Pin Size Max 28.017mm
Concentricity Max 0.062mm
Inside Diameter When Fitted Min 28mm
Inside Diameter When Fitted Max 28.021mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
