• AM3038-40 Oil Filled Bronze Plain Bush 30x38x40mm
1 1

SKU: AM.3038-40.PL

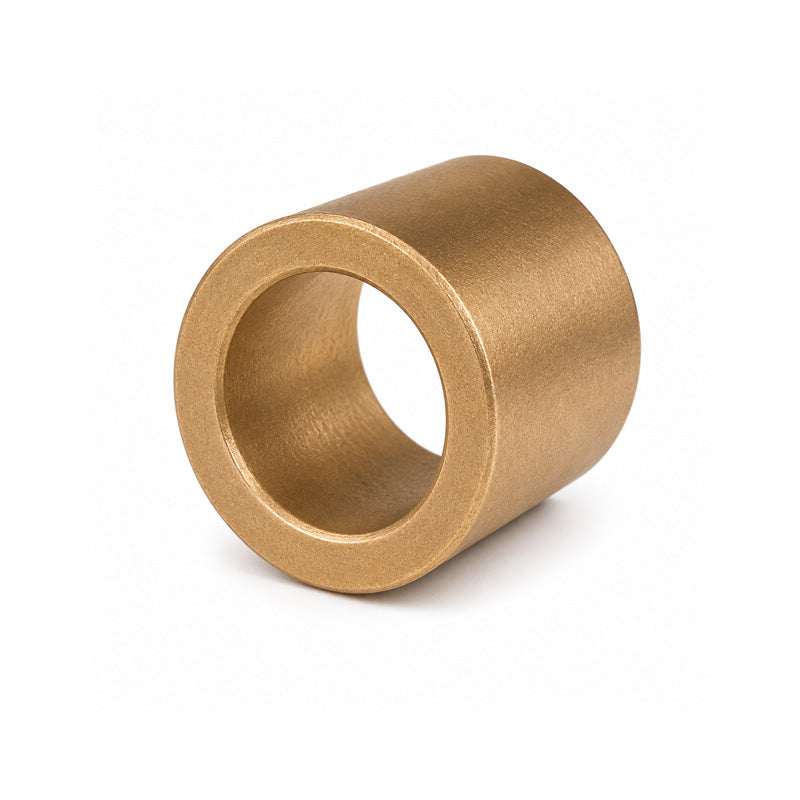

AM3038-40 Oil Filled Bronze Plain Bush 30x38x40mm

AM3038-40 Oil Filled Bronze Plain Bush 30x38x40mm
$17.62 ex VAT
$17.62 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
30mm
Outside Diameter:
38mm
Length:
40mm
Technical
Basic Dia d 30mm
Min I/d 30.007mm
Max I/d 30.034mm
Basic O/D 38mm
Min O/D 38.043mm
Max O/D 38.068mm
Length L 40mm
Min Length 39.805mm
Max Length 40.195mm
Recommended Housing Size Min 38mm
Recommended Housing Size Max 38.025mm
Shaft Diameter Min 29.959mm
Shaft Diameter Max 29.98mm
Fitting Pin Size Min 30.008mm
Fitting Pin Size Max 30.017mm
Concentricity Max 0.062mm
Inside Diameter When Fitted Min 30mm
Inside Diameter When Fitted Max 30.021mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
