• AM4046-30 Oil Filled Bronze Plain Bush 40x46x30mm
1 1

SKU: AM.4046-30.PL

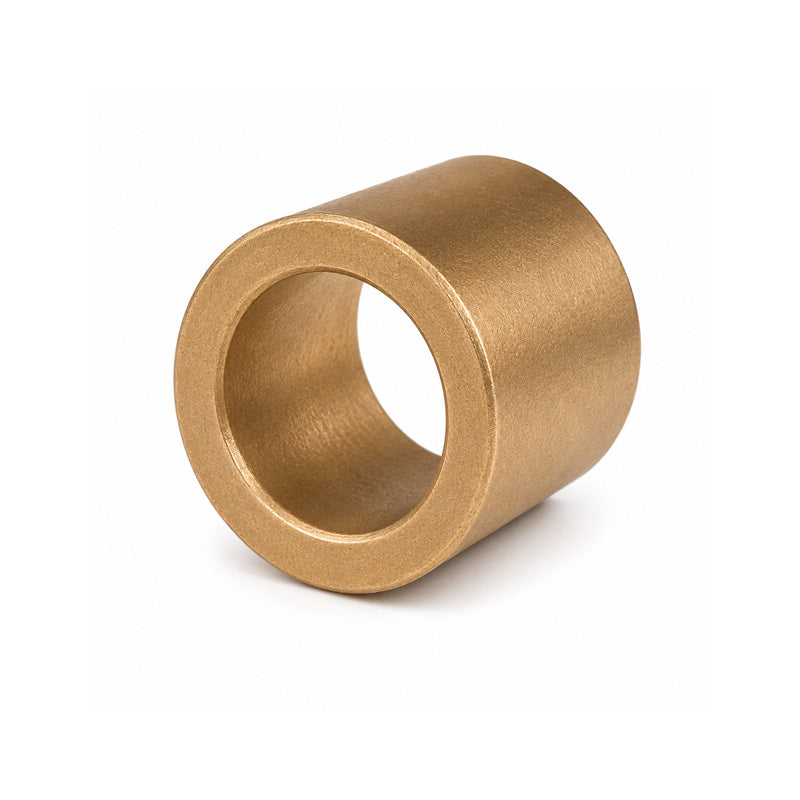

AM4046-30 Oil Filled Bronze Plain Bush 40x46x30mm

AM4046-30 Oil Filled Bronze Plain Bush 40x46x30mm
$8.81 ex VAT
$8.81 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
40mm
Outside Diameter:
46mm
Length:
30mm
Technical
Basic Dia d 40mm
Min I/d 40.009mm
Max I/d 40.034mm
Basic O/D 46mm
Min O/D 46.043mm
Max O/D 46.068mm
Length L 30mm
Min Length 29.835mm
Max Length 30.165mm
Recommended Housing Size Min 46mm
Recommended Housing Size Max 46.025mm
Shaft Diameter Min 39.95mm
Shaft Diameter Max 39.975mm
Fitting Pin Size Min 40.009mm
Fitting Pin Size Max 40.02mm
Concentricity Max 0.062mm
Inside Diameter When Fitted Min 40mm
Inside Diameter When Fitted Max 40.025mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
