SKU: AM.4050-40.PL

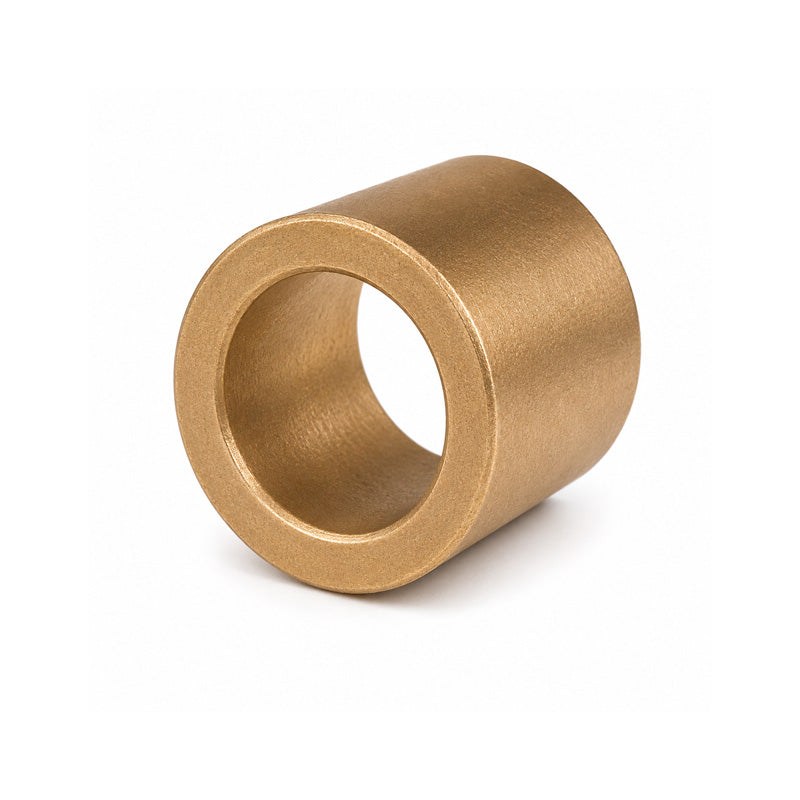

AM4050-40 Oil Filled Bronze Plain Bush 40x50x40mm

Name: AM4050-40 Oil Filled Bronze Plain Bush 40x50x40mm
Brand: Oilite
SKU: AM.4050-40.PL
Price: 23.53 USD
Availability: InStock

$23.53 ex VAT

Sale Sold out

In stock

Price Break

5+ $17.53

10+ $16.82

20+ $16.47

50+ $15.94

100+ $15.58

500+ $14.70

1000+ $12.40

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Basic Dia d	40mm
Min I/d	40.009mm
Max I/d	40.034mm
Basic O/D	50mm
Min O/D	50.043mm
Max O/D	50.068mm
Length L	40mm
Min Length	39.805mm
Max Length	40.195mm
Recommended Housing Size Min	50mm
Recommended Housing Size Max	50.025mm
Shaft Diameter Min	39.95mm
Shaft Diameter Max	39.975mm
Fitting Pin Size Min	40.009mm
Fitting Pin Size Max	40.02mm
Concentricity Max	0.062mm
Inside Diameter When Fitted Min	40mm
Inside Diameter When Fitted Max	40.025mm
Max PV	1.8 N/mm squared x m/s
Max Dynamic Load	14 N/mm squared
Operating Temperature	-60 to 200 Deg C
Radial Crushing Strength	160 K Min M/mm squared
Max Static Load	50 N/mm squared
Max Sliding Speed	5 m/s
Density	6.6 g/cm cubed
