• AM4248-40 Oil Filled Bronze Plain Bush 42x48x40mm
1 1

SKU: AM.4248-40.PL

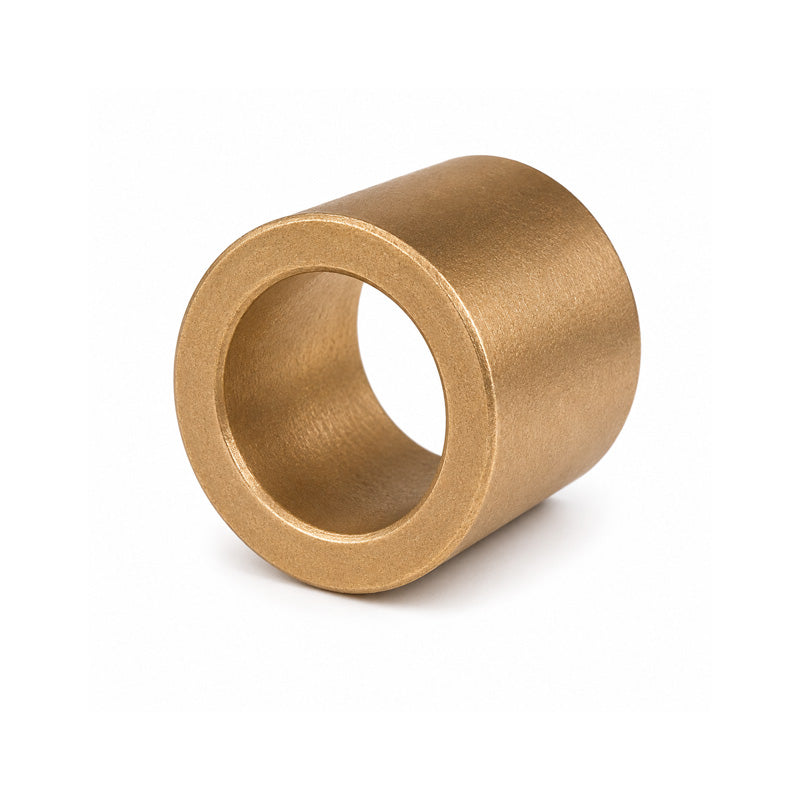

AM4248-40 Oil Filled Bronze Plain Bush 42x48x40mm

AM4248-40 Oil Filled Bronze Plain Bush 42x48x40mm
$41.20 ex VAT
$41.20 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
42mm
Outside Diameter:
48mm
Length:
40mm
Technical
Basic Dia d 42mm
Min I/d 42.009mm
Max I/d 42.034mm
Basic O/D 48mm
Min O/D 48.043mm
Max O/D 48.068mm
Length L 40mm
Min Length 39.805mm
Max Length 40.195mm
Recommended Housing Size Min 48mm
Recommended Housing Size Max 48.025mm
Shaft Diameter Min 41.95mm
Shaft Diameter Max 41.975mm
Fitting Pin Size Min 42.009mm
Fitting Pin Size Max 42.02mm
Concentricity Max 0.062mm
Inside Diameter When Fitted Min 42mm
Inside Diameter When Fitted Max 42.025mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
