• AM4555-55 Oil Filled Bronze Plain Bush 45x55x55mm
1 1

SKU: AM.4555-55.PL

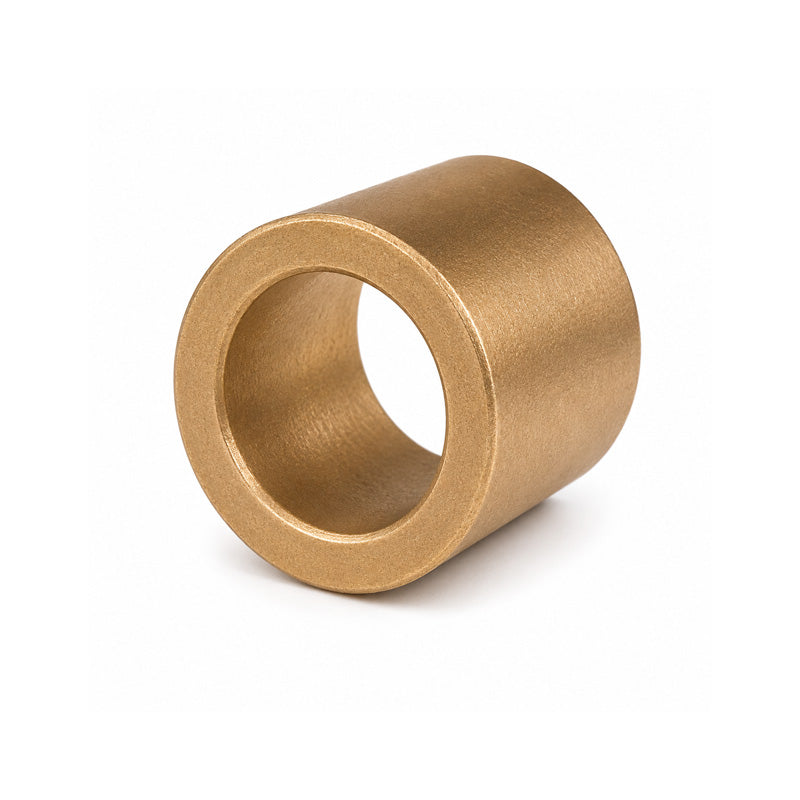

AM4555-55 Oil Filled Bronze Plain Bush 45x55x55mm

AM4555-55 Oil Filled Bronze Plain Bush 45x55x55mm
$35.29 ex VAT
$35.29 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
45mm
Outside Diameter:
55mm
Length:
55mm
Technical
Basic Dia d 45mm
Min I/d 45.009mm
Max I/d 45.048mm
Basic O/D 55mm
Min O/D 55.053mm
Max O/D 55.099mm
Length L 55mm
Min Length 54.77mm
Max Length 55.23mm
Recommended Housing Size Min 55mm
Recommended Housing Size Max 55.03mm
Shaft Diameter Min 44.95mm
Shaft Diameter Max 44.975mm
Fitting Pin Size Min 45.009mm
Fitting Pin Size Max 45.02mm
Concentricity Max 0.12mm
Inside Diameter When Fitted Min 45mm
Inside Diameter When Fitted Max 45.025mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
