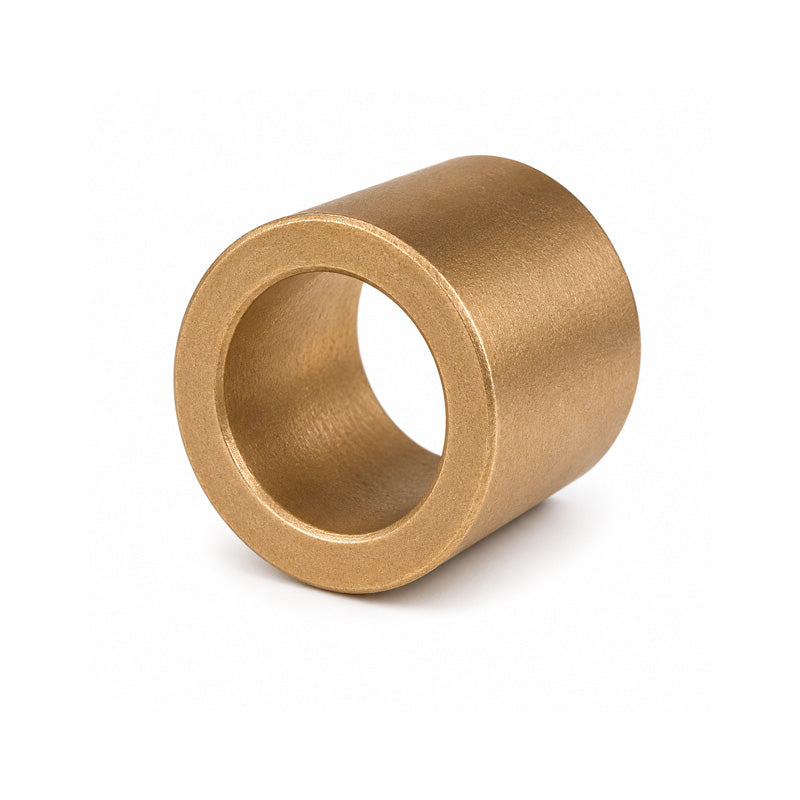

• AM4556-28 Oil Filled Bronze Plain Bush 45x56x28mm
1 1

SKU: AM.4556-28.PL

AM4556-28 Oil Filled Bronze Plain Bush 45x56x28mm

AM4556-28 Oil Filled Bronze Plain Bush 45x56x28mm
$29.43 ex VAT
$29.43 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
45mm
Outside Diameter:
56mm
Length:
28mm
Technical
Basic Dia d 45mm
Min I/d 45.009mm
Max I/d 45.048mm
Basic O/D 56mm
Min O/D 56.053mm
Max O/D 56.099mm
Length L 28mm
Min Length 27.835mm
Max Length 28.165mm
Recommended Housing Size Min 56mm
Recommended Housing Size Max 56.03mm
Shaft Diameter Min 44.95mm
Shaft Diameter Max 44.975mm
Fitting Pin Size Min 45.009mm
Fitting Pin Size Max 45.02mm
Concentricity Max 0.12mm
Inside Diameter When Fitted Min 45mm
Inside Diameter When Fitted Max 45.025mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
