• AM6068-50 Oil Filled Bronze Plain Bush 60x68x50mm
1 1

SKU: AM.6068-50.PL

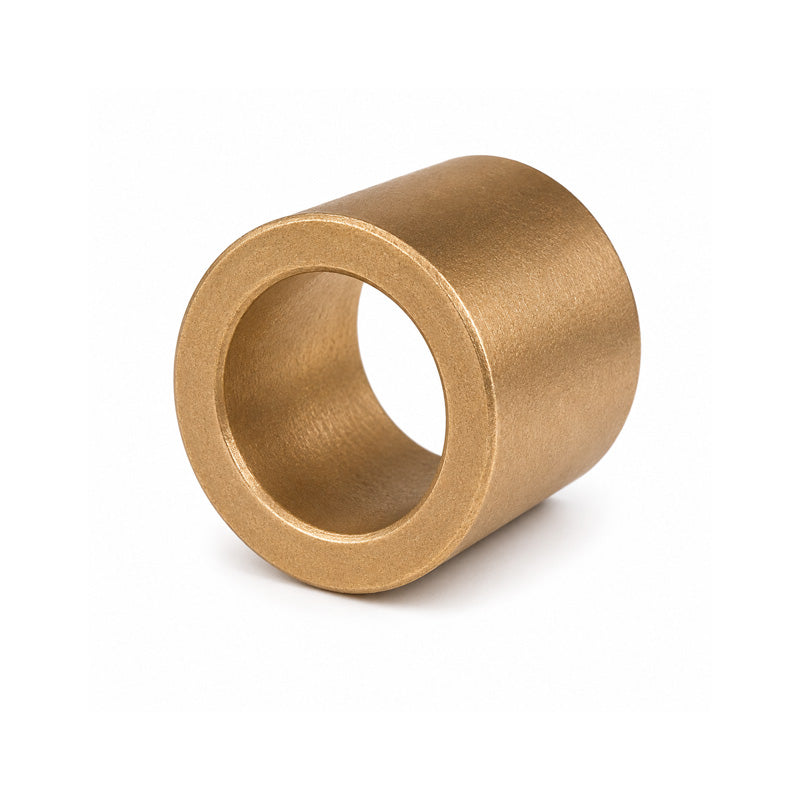

AM6068-50 Oil Filled Bronze Plain Bush 60x68x50mm

AM6068-50 Oil Filled Bronze Plain Bush 60x68x50mm
$23.52 ex VAT
$23.52 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Oilite - High Quality
Inside Diameter:
60mm
Outside Diameter:
68mm
Length:
50mm
Technical
Basic Dia d 60mm
Min I/d 60.01mm
Max I/d 60.056mm
Basic O/D 68mm
Min O/D 68.059mm
Max O/D 68.105mm
Length L 50mm
Min Length 49.805mm
Max Length 50.195mm
Recommended Housing Size Min 68mm
Recommended Housing Size Max 68.03mm
Shaft Diameter Min 59.94mm
Shaft Diameter Max 59.97mm
Fitting Pin Size Min 60.011mm
Fitting Pin Size Max 60.024mm
Concentricity Max 0.12mm
Inside Diameter When Fitted Min 60mm
Inside Diameter When Fitted Max 60.03mm
Max PV 1.8 N/mm squared x m/s
Max Dynamic Load 14 N/mm squared
Operating Temperature -60 to 200 Deg C
Radial Crushing Strength 160 K Min M/mm squared
Max Static Load 50 N/mm squared
Max Sliding Speed 5 m/s
Density 6.6 g/cm cubed
