SKU: AN16-EU

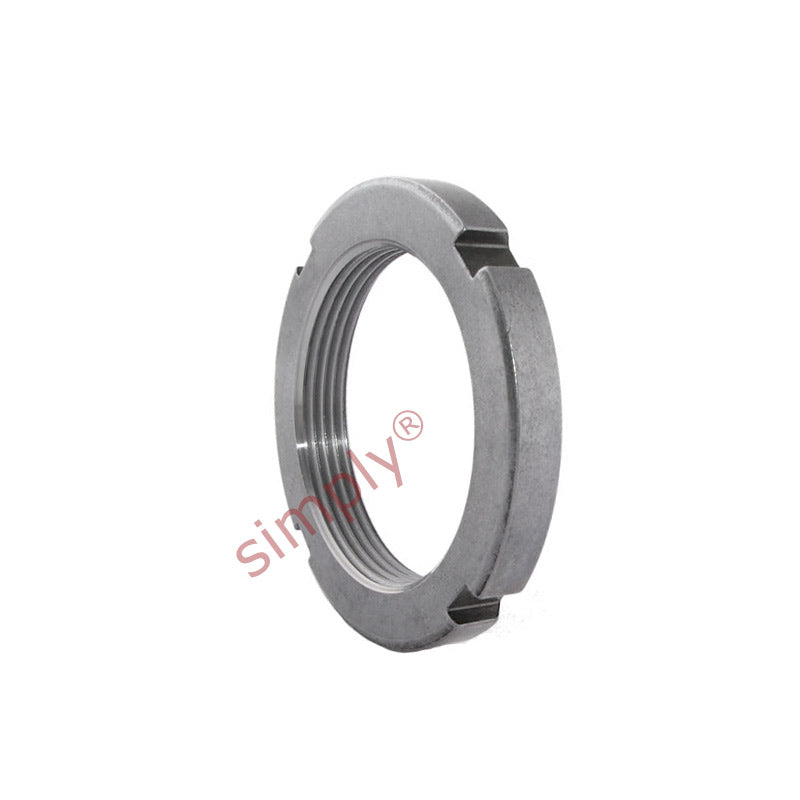

Premier Budget AN16 Imperial Lock Nut (Lock Washer Type) 3.137x4.161x0.604 inch

Name: Premier Budget AN16 Imperial Lock Nut (Lock Washer Type) 3.137x4.161x0.604 inch
Brand: Gen
SKU: AN16-EU
Price: 22.91 USD
Availability: InStock

$22.91 ex VAT

Sale Sold out

In stock

Price Break

3+ $15.35

5+ $14.48

9+ $14.31

19+ $14.14

49+ $13.97

74+ $13.79

99+ $12.93

199+ $12.76

249+ $12.59

499+ $12.42

999+ $12.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Premier Budget - Good Quality
Inside Diameter:: 79.68mm = 3.137 inch
Outside Diameter:: 105.69mm = 4.161 inch
Width:: 15.34mm = 0.604 inch

Technical

G	3.137 inch
Threads per inch	12
d<sub>1</sub>	3.844 inch
d<sub>3</sub> max	4.161 inch
B	0.604 inch
b	0.36 inch
h	0.135 inch
Static axial load carrying capacity	37318 lbf
Mass	0.4491 kg
Associated spanner	<a href="advanced_search_result.php?search_in_description=1&keywords=HN16+lock+spanner">HN16 [Click Here]</a>
Associated locking device	<a href="advanced_search_result.php?search_in_description=1&keywords=W16+lock+tab+washer">W16 [Click Here]
