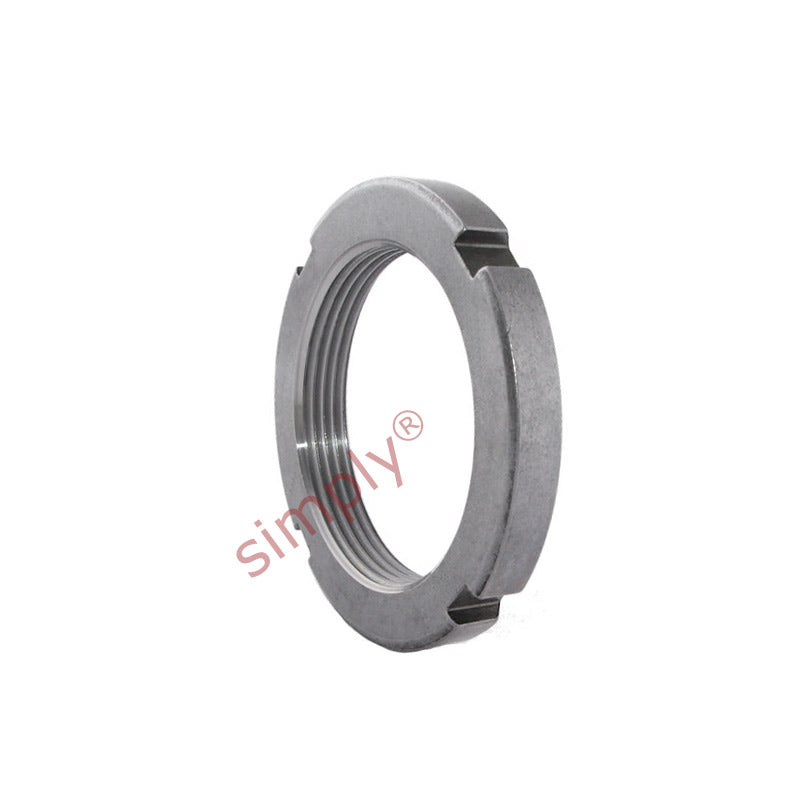

• Premier Budget AN20 Imperial Lock Nut (Lock Washer Type) 3.918x5.193x0.76 inch
1 1

SKU: AN20-EU

Premier Budget AN20 Imperial Lock Nut (Lock Washer Type) 3.918x5.193x0.76 inch

Premier Budget AN20 Imperial Lock Nut (Lock Washer Type) 3.918x5.193x0.76 inch
$29.46 ex VAT
$29.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.73
5+ $18.62
9+ $18.40
19+ $18.18
49+ $17.96
74+ $17.74
99+ $16.63
199+ $16.41
249+ $16.18
499+ $15.96
999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
99.52mm = 3.918 inch
Outside Diameter:
131.9mm = 5.193 inch
Width:
19.3mm = 0.76 inch
Technical
G 3.918 inch
Threads per inch 12
d<sub>1</sub> 4.813 inch
d<sub>3</sub> max 5.193 inch
B 0.76 inch
b 0.36 inch
h 0.166 inch
Static axial load carrying capacity 60698 lbf
Mass 0.8754 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=HN18-20+lock+spanner">HN18-20 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W20+lock+tab+washer">W20 [Click Here]
