• Premier Budget AN21 Imperial Lock Nut (Lock Washer Type) 4.122x5.443x0.76 inch
1 1

SKU: AN21-EU

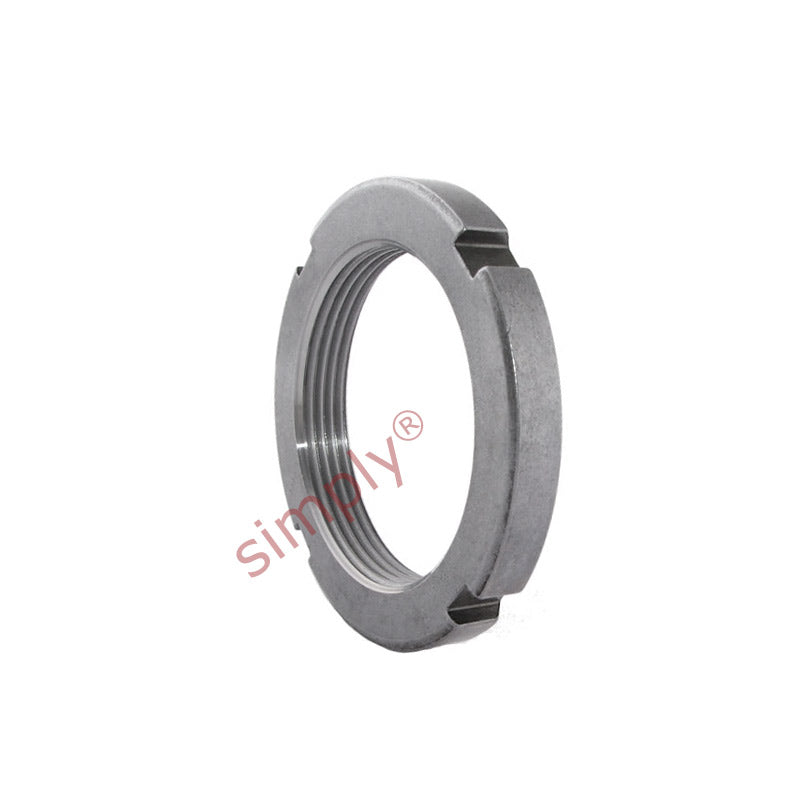

Premier Budget AN21 Imperial Lock Nut (Lock Washer Type) 4.122x5.443x0.76 inch

Premier Budget AN21 Imperial Lock Nut (Lock Washer Type) 4.122x5.443x0.76 inch
$22.91 ex VAT
$22.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $15.35
5+ $14.48
9+ $14.31
19+ $14.14
49+ $13.97
74+ $13.79
99+ $12.93
199+ $12.76
249+ $12.59
499+ $12.42
999+ $12.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
104.7mm = 4.122 inch
Outside Diameter:
138.25mm = 5.443 inch
Width:
19.3mm = 0.76 inch
Technical
G 4.122 inch
Threads per inch 12
d<sub>1</sub> 5 inch
d<sub>3</sub> max 5.443 inch
B 0.76 inch
b 0.485 inch
h 0.198 inch
Static axial load carrying capacity 62947 lbf
Mass 0.9253 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=HN21-22+lock+spanner">HN21-22 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W21+lock+tab+washer">W21 [Click Here]
