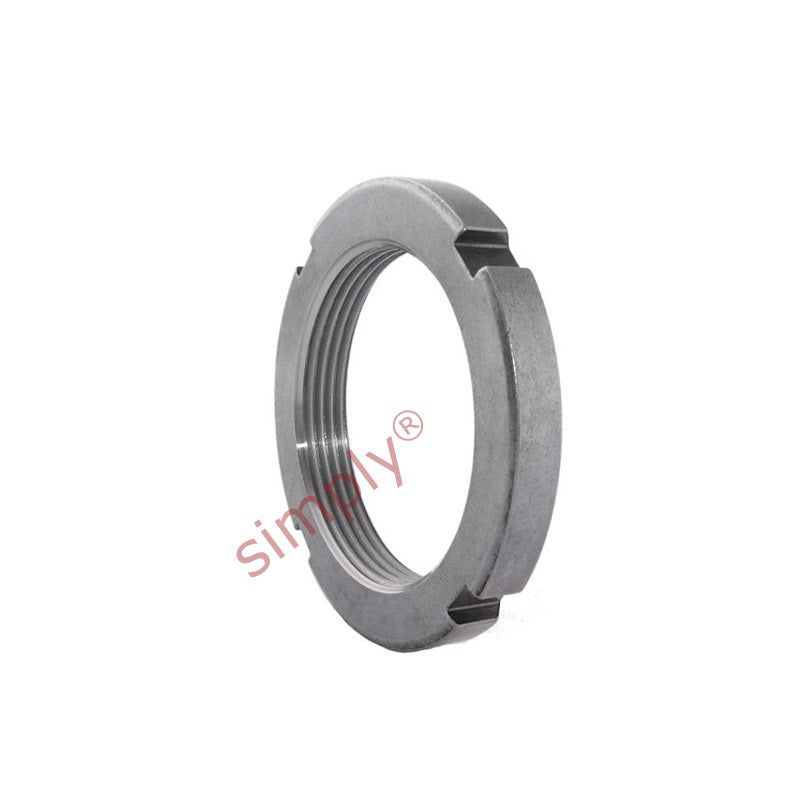

• Premier Budget AN24 Imperial Lock Nut (Lock Washer Type) 4.716x6.13x0.823 inch
1 1

SKU: AN24-EU

Premier Budget AN24 Imperial Lock Nut (Lock Washer Type) 4.716x6.13x0.823 inch

Premier Budget AN24 Imperial Lock Nut (Lock Washer Type) 4.716x6.13x0.823 inch
$40.55 ex VAT
$40.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.17
5+ $25.64
9+ $25.33
19+ $25.03
49+ $24.72
74+ $24.42
99+ $22.89
199+ $22.59
249+ $22.28
499+ $21.98
999+ $21.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Premier Budget - Good Quality
Inside Diameter:
119.79mm = 4.716 inch
Outside Diameter:
155.7mm = 6.13 inch
Width:
20.9mm = 0.823 inch
Technical
G 4.716 inch
Threads per inch 12
d<sub>1</sub> 5.688 inch
d<sub>3</sub> max 6.13 inch
B 0.823 inch
b 0.485 inch
h 0.198 inch
Static axial load carrying capacity 75311 lbf
Mass 1.2338 kg
Associated spanner <a href="advanced_search_result.php?search_in_description=1&keywords=TMFN23-30+lock+spanner">TMFN23-30 [Click Here]</a>
Associated locking device <a href="advanced_search_result.php?search_in_description=1&keywords=W24+lock+tab+washer">W24 [Click Here]
