• Major Branded AOH2344 Withdrawal Sleeve for 200mm shaft
1 1

SKU: AOH2344-MB

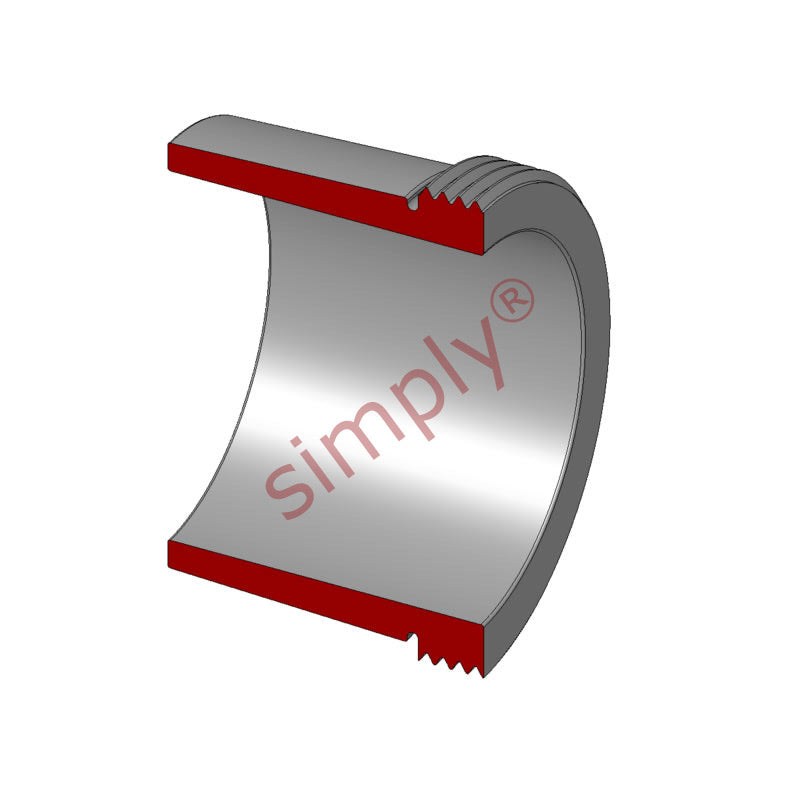

Major Branded AOH2344 Withdrawal Sleeve for 200mm shaft

Major Branded AOH2344 Withdrawal Sleeve for 200mm shaft
$1,291.48 ex VAT
$1,291.48 ex VAT
Sale Sold out

In stock

Price Break
10+ $865.07
19+ $816.47
29+ $806.75
39+ $797.03
49+ $787.31
74+ $777.59
99+ $728.99
199+ $719.27
249+ $709.55
499+ $699.83
999+ $680.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
200mm
Outside Diameter:
220mm
Width:
181mm
Technical
--- Dimensions
d1 200mm
d 220mm
B1 181mm
B2 189mm
G Thread 240x4mm
G1 30
G2 Gl/4
A 9mm
Weight 13.5 kg
--- Assembly Parts
Sleeve AOH2344
Nut HM3048
Hydraulic nut HMV48E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23244K+taper>23244K</a>
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22344K+taper>22344K</a>
