SKU: AOH24068-MB

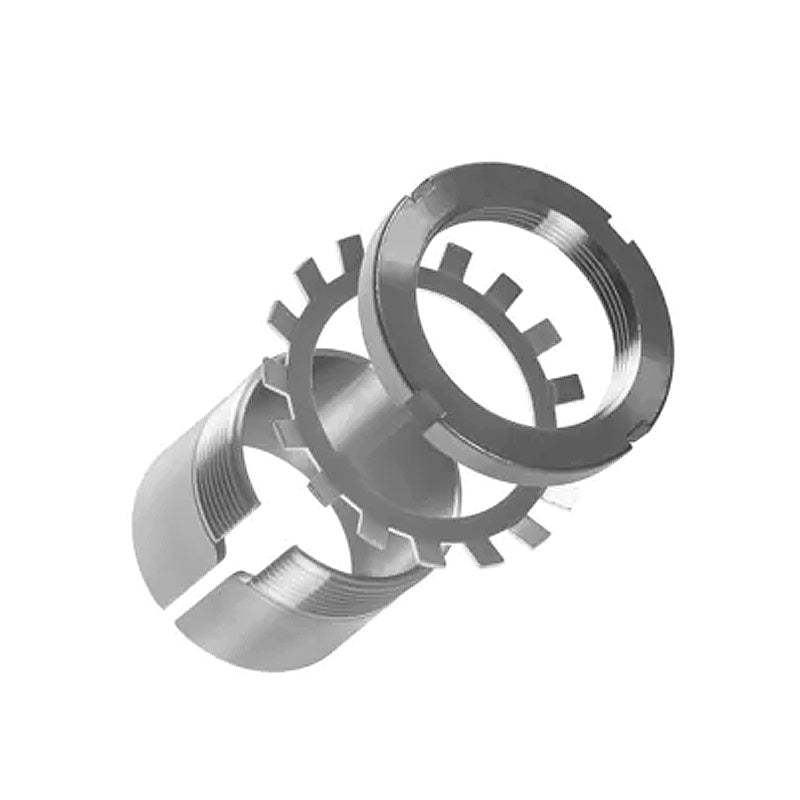

Major Branded AOH24068 Withdrawal Sleeve for 320mm shaft
- Regular price
- $4,018.45 ex VAT
- Sale price
- $4,018.45
- Regular price
-
Not in stock
Quantity Price Breaks
10
$3,576.42
19
$3,375.50
29
$3,335.31
39
$3,295.13
49
$3,254.94
74
$3,214.76
99
$3,013.84
199
$2,973.65
249
$2,933.47
499
$2,893.28
999
$2,812.92
SKU:
AOH24068-MB
Major Branded AOH24068 Withdrawal Sleeve for 320mm shaft
- Regular price
- $4,018.45 ex VAT
- Sale price
- $4,018.45
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical
| --- | = | Dimensions |
| d1 | = | 320mm |
| d | = | 340mm |
| B1 | = | 206mm |
| B2 | = | 225mm |
| G | = | Thread 360x5mm |
| G1 | = | 26 |
| G2 | = | Gl/4 |
| A | = | 9mm |
| Weight | = | 18 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AOH24068 |
| Nut | = | HM3172 |
| Hydraulic nut | = | HMV72E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24068K+taper> | = | 24068K< |
| /a> | = |
