SKU: AOH24180-MB
Major Branded AOH24180 Withdrawal Sleeve for 380mm shaft
- Regular price
- $7,646.60 ex VAT
- Sale price
- $7,646.60
- Regular price
-
Not in stock
Quantity Price Breaks
10
$6,805.47
19
$6,423.14
29
$6,346.68
39
$6,270.21
49
$6,193.75
74
$6,117.28
99
$5,734.95
199
$5,658.48
249
$5,582.02
499
$5,505.55
999
$5,352.62
SKU:
AOH24180-MB
Major Branded AOH24180 Withdrawal Sleeve for 380mm shaft
- Regular price
- $7,646.60 ex VAT
- Sale price
- $7,646.60
- Regular price
-
Description
|
Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling Benefits: Re-useable, adjustable, positive location, easy to dismount |
Technical

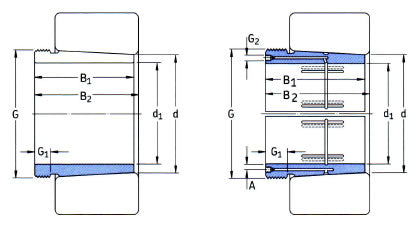

| --- | = | Dimensions |
| d1 | = | 380mm |
| d | = | 400mm |
| B1 | = | 278mm |
| B2 | = | 298mm |
| G | = | Thread 420x5mm |
| G1 | = | 28 |
| G2 | = | Gl/4 |
| A | = | 9mm |
| Weight | = | 35 kg |
| --- | = | Assembly Parts |
| Sleeve | = | AOH24180 |
| Nut | = | HM3184 |
| Hydraulic nut | = | HMV84E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=24180K+taper> | = | 24180K< |
| /a> | = |
