• Major Branded AOH3148 Withdrawal Sleeve for 220mm shaft
1 1

SKU: AOH3148-MB

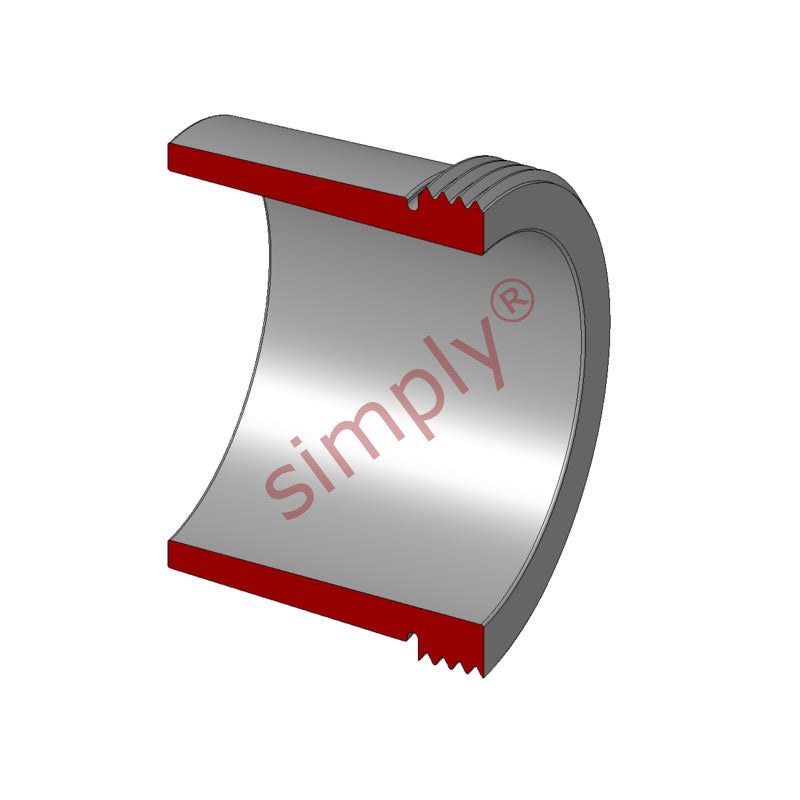

Major Branded AOH3148 Withdrawal Sleeve for 220mm shaft

Major Branded AOH3148 Withdrawal Sleeve for 220mm shaft
$1,427.01 ex VAT
$1,427.01 ex VAT
Sale Sold out

In stock

Price Break
10+ $955.85
19+ $902.15
29+ $891.41
39+ $880.67
49+ $869.93
74+ $859.19
99+ $805.49
199+ $794.75
249+ $784.01
499+ $773.27
999+ $751.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
220mm
Outside Diameter:
240mm
Width:
154mm
Technical
--- Dimensions
d1 220mm
d 240mm
B1 154mm
B2 161mm
G Thread 260x4mm
G1 25
G2 Gl/4
A 9mm
Weight 12 kg
--- Assembly Parts
Sleeve AOH3148
Nut HM3052
Hydraulic nut HMV52E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23148K+taper>23148K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3148K+taper>C3148K</a>
