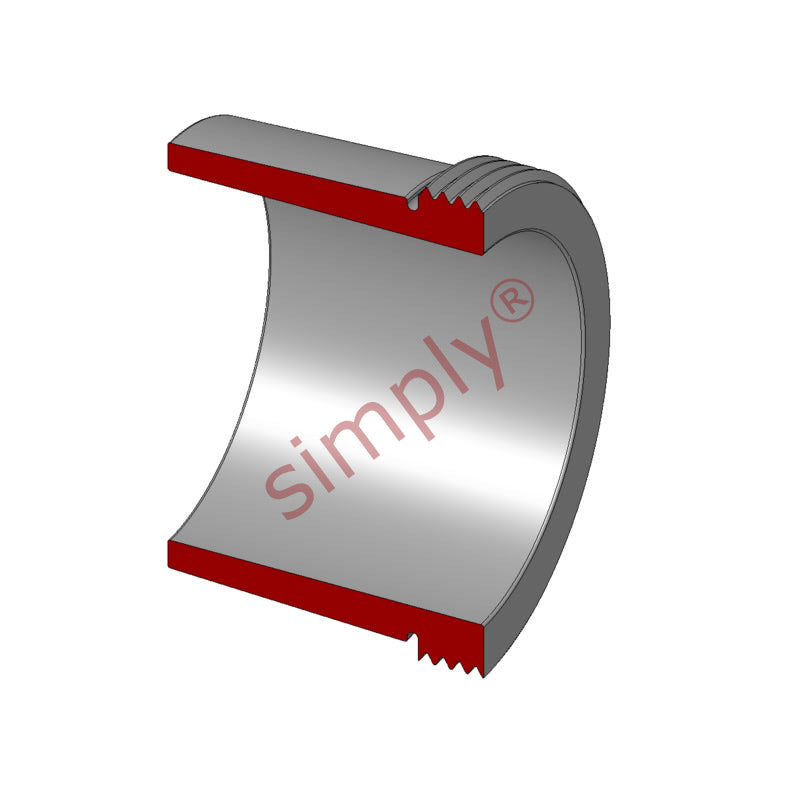

• Major Branded AOH3156G Withdrawal Sleeve for 260mm shaft
1 1

SKU: AOH3156G-MB

Major Branded AOH3156G Withdrawal Sleeve for 260mm shaft

Major Branded AOH3156G Withdrawal Sleeve for 260mm shaft
$2,382.42 ex VAT
$2,382.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,595.81
19+ $1,506.16
29+ $1,488.23
39+ $1,470.30
49+ $1,452.37
74+ $1,434.44
99+ $1,344.79
199+ $1,326.86
249+ $1,308.93
499+ $1,290.99
999+ $1,255.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
260mm
Outside Diameter:
280mm
Width:
175mm
Technical
--- Dimensions
d1 260mm
d 280mm
B1 175mm
B2 183mm
G Thread 300x4mm
G1 28
G2 Gl/4
A 9mm
Weight 17 kg
--- Assembly Parts
Sleeve AOH3156G
Nut HM3160
Hydraulic nut HMV60E
--- Matching Spherical Roller Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23156K+taper>23156K</a>
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C3156K+taper>C3156K</a>
