• AS1024 Budget Thrust Washer Series AS 10x24x1mm
1 1

SKU: AS1024-EU

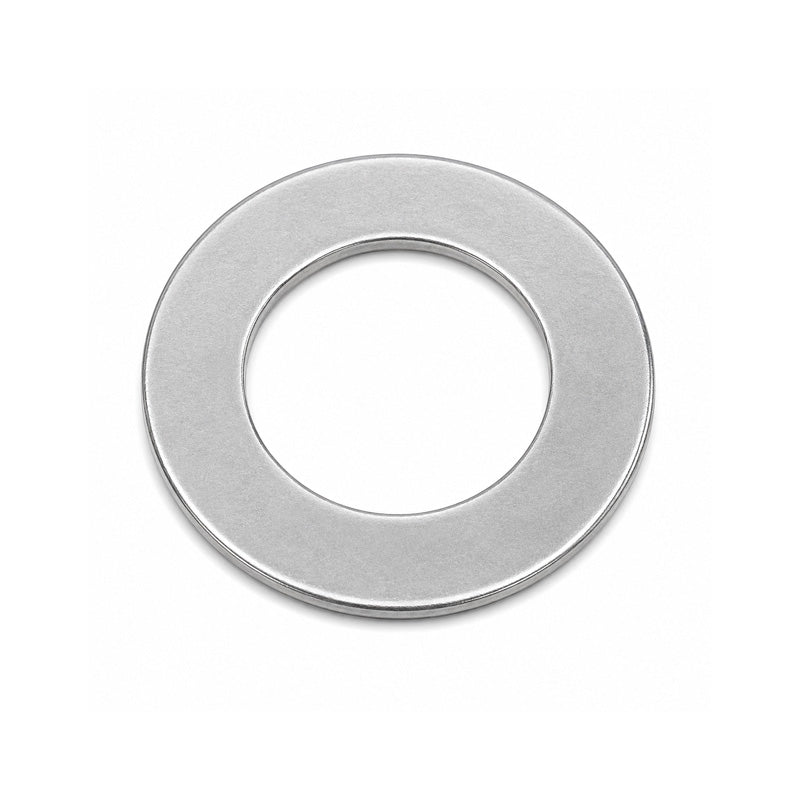

AS1024 Budget Thrust Washer Series AS 10x24x1mm

AS1024 Budget Thrust Washer Series AS 10x24x1mm
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.47
20+ $0.36
50+ $0.26
100+ $0.21
500+ $0.17
1000+ $0.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget AS Series Thrust Washers: Made of spring steel (equivalent to AISI 1074 / SAE 5165) these thrust washers are hardened and polished and are only 1mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
10mm
Outside Diameter:
24mm
Width:
1mm
Technical
d 10mm
d1 1mm
D 24mm
B 1mm
r1r2 0.3mm
Material Spring Steel (AISI 1074 / SAE 5165)
Weight 7 g
